DUST COMMANDER P30 View larger

DUST COMMANDER P30 - 30 liter plastic cyclone filter kit

Online only

DUST-P30

New product

- Kit version of the DUST COMMANDER CLC, pre-assembled on a blue HDPE drum with a capacity of 30 liters

- Supplied with adapters and anti-crush valve

More details

16 Items

in stock !

66,58 €

  No tax

Share

DUST COMMANDER P30 - datasheet

How does it work?

A mixture of air and dust passes through the filter via the tangential inlet. The shape of the filter is designed to generate a vortex which enables the evacuation by gravity of heavier-than-air particles through the lower ejection port and allows air to pass through the upper outlet.

Convenient

Vacuum large amounts of dust/chips/rubble/etc. without filling your vacuum bag.

Powerful

Never lose suction power thanks to the cyclone effect.

Economical

Save time and money by replacing your vacuum bags up to 20 times less often!
Manufacturing material white color polypropylene filter / blue color high density polyethylene container
Internal / external diameter of the inlet / outlet ducts 50/55 mm
Height 80.5 cm
Width 28 cm
Depth 28 cm
Weight 2.2 kg
Wall thickness (drum) 2.5mm +/- 0.1mm

Accessories

DUST COMMANDER HESD - Antistatic vacuum hose
New product
Array ( [id_product] => 26 [id_supplier] => 0 [id_manufacturer] => 2 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => [upc] => 39173200 [ecotax] => 0.000000 [quantity] => 72 [minimal_quantity] => 1 [price] => 16.24 [wholesale_price] => 6.360000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-HESD [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 0.560000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 1 [date_add] => 2021-03-12 10:58:23 [date_upd] => 2024-10-30 08:57:38 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>

Characteristics:
An internally smooth profile full plastic hose with very low flow resistance, good restoring force (after compression or kinking) with excellent flexibility, surface resistance according to DIN 53482 ≤ 1010 Ohm

Areas of application:
Industrial vacuum cleaners, textile machines, woodworking machines, granulate conveyors and apparatus construction

Temperature range:
-50 ° C to + 60 ° C

Color :
Black with blue shoulder

Available in 2 diameters (internal):

-25mm

-32mm

DUST COMMANDER compatible screw cuffs :

DUST COMMANDER GC

DUST COMMANDER GCx

***************************************************************************************************

internal Ø

mm

external Ø

mm

radius of curvature

(min) mm

Weight

kg/m

Vacuum

(max.) mbar

Pressure

(max.) bar
25 33.0 50 0.18 600 0.6
32 40.5 70 0.27 500 0.5

***************************************************************************************************

The hose with a nominal diameter of 25mm is compatible with the following fittings:

- FESTOOL 202346

- FESTOOL 577162

The 32mm nominal diameter hose is compatible with the following fittings:

- BOSCH 2 608 000 585

[description_short] =>

Smooth inside profile all-plastic hose made of antistatic modified TPO

- highly flexible

- good restoring force

- high internal smoothness

Delivered in multiples of 3m. Maximum length of one piece: 24m

Our hoses are delivered in one piece. So if you order for example 2 units of 3m you will receive a single hose of 6m lenght.

[link_rewrite] => dust-commander-hesd-antistatic-vacuum-hose-3m [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER HESD - Antistatic vacuum hose (3m) [available_now] => In stock [available_later] => Reference HESD32 is currently out of stock. Deliveries for this reference will resume on 21/03/2023. [id_image] => 26-111 [legend] => DUST COMMANDER HESD - Antistatic vacuum hose [manufacturer_name] => Sulaco A.I.R Works [category_default] => Accessories [id_product_attribute] => 1 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/26-dust-commander-hesd-antistatic-vacuum-hose-3m.html [attribute_price] => 0 [price_tax_exc] => 16.24 [price_without_reduction] => 16.24 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 164 [features] => Array ( [0] => Array ( [name] => Manufacturing material [value] => Thermoplastic Polyolefin (TPO) [id_feature] => 5 ) [1] => Array ( [name] => Weight [value] => 180g/m (25mm) - 270g/m (32mm) [id_feature] => 4 ) [2] => Array ( [name] => Color [value] => Black and blue [id_feature] => 7 ) ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Smooth inside profile all-plastic hose made of antistatic modified TPO - highly flexible - good restoring force - high internal smoothness Delivered in multiples of 3m. Maximum length of one piece: 24m Our hoses are delivered in one piece. So if you order for example 2 units of 3m you will receive a single hose of 6m lenght.
16,24 €
Add to cart
In stock

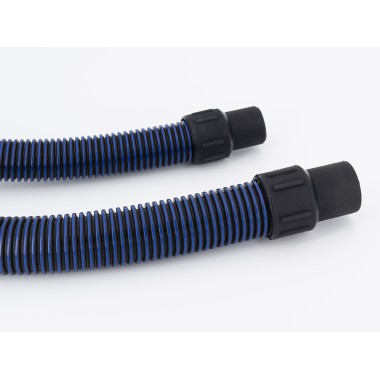

DUST COMMANDER GC - PU Crip sleeve for DUST-HESD vacuum hose
New product
Array ( [id_product] => 27 [id_supplier] => 0 [id_manufacturer] => 2 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => [upc] => 39174000 [ecotax] => 0.000000 [quantity] => 182 [minimal_quantity] => 1 [price] => 8.75 [wholesale_price] => 3.680000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-GC [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 0.023140 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 38 [date_add] => 2021-03-15 10:40:31 [date_upd] => 2024-10-10 14:02:14 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>

Characteristics:
Soft screw-on cuff for DUST-HESD antistatic hoses.
Made of electrically conductive polyurethane (<10 ^ 4 ohms)

Areas of application:
Industrial vacuum cleaners, textile machines, woodworking machines, granulate conveyors and apparatus construction

Temperature range:
-40 ° C to + 90 ° C (intermittent to + 125 ° C)

Color :
Black

Thanks to its flexibility, the 32mm version (DUST-GC32) can be plugged directly into the 35mm adapters of the DUST COMMANDER CLC and DLX ESD

Otherwise we recommend the following adapter/connector combinations :

DUST-GC25 with DUST-SD29

DUST-GC32 with DUST-SD37 (for CLC/DLX ESD) or DUST-HD37 (for HD)

PLEASE NOTE: reference sold individually. The price displayed corresponds to 1 connector/nozzle.

[description_short] =>

Available in 2 sizes:

- 25mm

- 32mm

These diameters correspond to the nominal (internal) diameter of the vacuum hose. Please refer to the drawing for the external dimensions of the nozzle.

PLEASE NOTE: reference sold individually. The price displayed corresponds to 1 connector/nozzle.

[link_rewrite] => dust-commander-gc-pu-screw-connector-for-dust-hesd-vacuum-hose [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER GC - PU Screw connector for DUST-HESD vacuum hose [available_now] => In stock [available_later] => [id_image] => 27-114 [legend] => DUST COMMANDER GC - PU Crip sleeve for DUST-HESD vacuum hose [manufacturer_name] => Sulaco A.I.R Works [category_default] => Accessories [id_product_attribute] => 38 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/27-dust-commander-gc-pu-screw-connector-for-dust-hesd-vacuum-hose.html [attribute_price] => 0 [price_tax_exc] => 8.75 [price_without_reduction] => 8.75 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 221 [features] => Array ( [0] => Array ( [name] => Manufacturing material [value] => Polyuréthane (PU) électroconducteur (inf. 10000 ohms) [id_feature] => 5 ) [1] => Array ( [name] => Color [value] => black [id_feature] => 7 ) ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Available in 2 sizes: - 25mm - 32mm These diameters correspond to the nominal (internal) diameter of the vacuum hose. Please refer to the drawing for the external dimensions of the nozzle. PLEASE NOTE: reference sold individually. The price displayed corresponds to 1 connector/nozzle.
8,75 €
Add to cart
In stock
M103N - Master/Slave switch 230 V/ AC (400 V/AC)
New product
Array ( [id_product] => 55 [id_supplier] => 0 [id_manufacturer] => 0 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => 4024028031033 [upc] => 85364900 [ecotax] => 0.000000 [quantity] => 4 [minimal_quantity] => 1 [price] => 24.9 [wholesale_price] => 12.520000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => KEMO-M103N [supplier_reference] => [location] => [width] => 16.000000 [height] => 8.500000 [depth] => 4.500000 [weight] => 0.260000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 0 [date_add] => 2022-10-20 14:27:31 [date_upd] => 2024-10-10 14:11:36 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>
Technical Data
Operating Voltage
 230 V/AC
Maximum Currents
15 A for the master, 15 A for the slave, but the total current must not exceed 16 A!
Example
if the master port needs 10 A, only one slave load of max. 6 A can be connected
Tripping Power The module connects at currents of approx. 40 mA or less
Operating temperature range -15 ºC to + 70 ºC
Switch Function Relay 1 x ON max. 16 A
Own Power Module <0.5 W
Dimensions without mounting brackets 67 x 65 x 37 mm
Connection Connection cable (single core)

Datasheet (pdf)

[description_short] =>

Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.

[link_rewrite] => m103n-masterslave-switch-230-v-ac-400-vac [meta_description] => [meta_keywords] => [meta_title] => [name] => M103N - Master/Slave switch 230 V/ AC (400 V/AC) [available_now] => [available_later] => [id_image] => 55-239 [legend] => M103N - Master/Slave switch 230 V/ AC (400 V/AC) [manufacturer_name] => [category_default] => Accessories [id_product_attribute] => 0 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/55-m103n-masterslave-switch-230-v-ac-400-vac-4024028031033.html [attribute_price] => 0 [price_tax_exc] => 24.9 [price_without_reduction] => 24.9 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 4 [features] => Array ( ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.
24,90 €
Add to cart
In Stock
