DUST COMMANDER CDC301 - Cyclone dust Collector 3hp 220V Single Phase View larger

DUST COMMANDER CDC303 - Cyclone dust Collector 3hp 380V 3 Phase

DUST-CDC303

New product

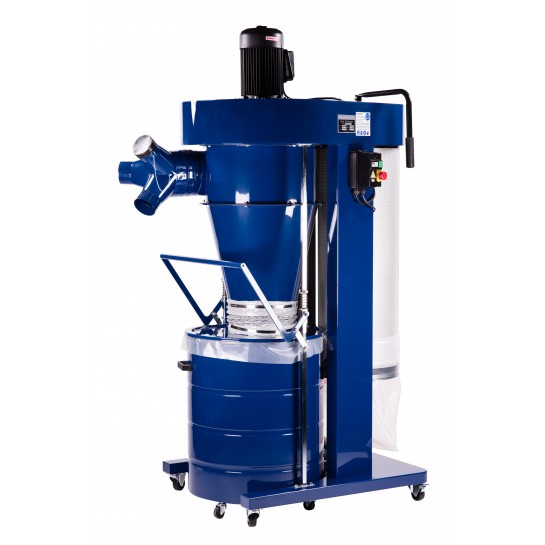

DUST COMMANDER CDC303 - 3HP Portable Cyclone Dust Collector - three phase

More details

This product is no longer in stock

2 491,67 €

  No tax

Share

The DUST COMMANDER CDC303 Portable Cyclone Dust Collector features an input air flow of 3300m/3 and up to 2.7Kpa of static pressure, creating a vortex of incoming air that extracts heavy wood chips and large dust particles into a plastic-bag-lined steel drum.

The remaining fine dust traveling past the impeller, is caught by a canister filter and then deposited in a separate plastic collection bag.

The spun-bond polyester filter catches 99.9% of particles to 1 micron in size and is pleated to provide maximum surface area for efficient air flow.

A turn of the crank handle rotates the paddle brushes, knocking caked-on dust off of the pleats to keep your airflow rate as high as possible.

The collection drum features a quick-release handle that makes it easy to roll it out for sawdust disposal.

A viewing window lets you know when to empty the drum, and a unique vacuum equalization system allows the use of plastic collection bags for easy chip disposal.

3 x 100mm ports allow you to connect multiple machines.

This cyclone has a normal operating sound range < 79 dB

SPECIFICATIONS:

  • Motor: 3 HP, 380V, three-phase, 6A
  • Intake hole size: 200mm with 3 x 100mm adapter
  • 1.0mm thick steel construction
  • Airflow capacity: 3300m3/h @ 0.72Kpa
  • Max static pressure: 2.7kPa
  • Filtration: 1 micron
  • Filter surface area: 4.18m3/h
  • Collection size: 170 liters
  • Sound rating: < 79dB
  • Overall dimensions : 79 x 137 x 208cm
  • Approximate weight: 150kg
  • Approximate shipping weight: 170kg

FEATURES:

  • Collection drum with quick-release handle for easy disposal
  • Two-stage operation for ultimate dust collection
  • Swivel casters
  • Lift handle and roll drum for easy sawdust disposal
  • Pleated filter with paddle brushes and crank handle for max air flow efficiency
  • Vacuum equalizer built into collection drum for use with disposable plastic bags

Accessories

DUST COMMANDER HPU - Polyurethane flexible ducting (10m)
New product
Array ( [id_product] => 58 [id_supplier] => 0 [id_manufacturer] => 2 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => [upc] => 39173200 [ecotax] => 0.000000 [quantity] => 0 [minimal_quantity] => 1 [price] => 119.5 [wholesale_price] => 50.100000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-HPU [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 5.500000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 19 [date_add] => 2022-11-23 12:55:58 [date_upd] => 2024-12-12 10:36:45 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>

Applications:
Designed for suction of air, dust, oil and petrol fumes. Good abrasion resistance and compressibility

Areas of application:
Industrial vacuum cleaners, textile machines, woodworking machines, granulate conveyors and apparatus construction

Temperature range:
-30 ° C to + 100 ° C

Color :
Transparent

Spiral direction:
counter-clockwise (left)

Available in 4 diameters (internal):

-50mm

-55mm

-100mm

-125mm

-150mm

***************************************************************************************************

internal Ø

mm

external Ø

mm

radius of curvature

(min) mm

Wall thickness

mm

Weight

kg/m

Vacuum

(max.) mbar

Pressure

(max.) bar
50 56 50 0.5 0.400 280 1.3
55 63 55 0.5 0.445 250 1.10
100 109 70 0.4 0.406 90 0.2
125 133 88 0.4 0.507 80 0.2
150 158 105 0.4 0.780 60 0.1

***************************************************************************************************

[description_short] =>

- Flexible ducting made out of polyether polyurethane wall reinforced with copper-coated spring steel wire for grounding. Microbe and Hydrolysis resistant

- Delivered in multiples of 10m. Maximum length of one piece: 10m

- If you order 2 x 10m you will receive 2 x 10m of hose.

- Spiral direction : counter-clockwise (left)

[link_rewrite] => dust-commander-hesd-antistatic-vacuum-hose-3m [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER HPU - Polyurethane flexible ducting (10m) [available_now] => In stock [available_later] => [id_image] => 58-251 [legend] => DUST COMMANDER HPU - Polyurethane flexible ducting (10m) [manufacturer_name] => Sulaco A.I.R Works [category_default] => Accessories [id_product_attribute] => 19 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/58-dust-commander-hesd-antistatic-vacuum-hose-3m.html [attribute_price] => 36 [price_tax_exc] => 119.5 [price_without_reduction] => 119.5 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 13 [features] => Array ( [0] => Array ( [name] => Manufacturing material [value] => Polyurethane/steel [id_feature] => 5 ) [1] => Array ( [name] => Color [value] => Transparent [id_feature] => 7 ) ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

- Flexible ducting made out of polyether polyurethane wall reinforced with copper-coated spring steel wire for grounding. Microbe and Hydrolysis resistant - Delivered in multiples of 10m. Maximum length of one piece: 10m - If you order 2 x 10m you will receive 2 x 10m of hose. - Spiral direction : counter-clockwise (left)
119,50 €
Add to cart
Product available with different options
DUST COMMANDER KBHC - Keyed Bridge Hose Clamp
New product
Array ( [id_product] => 77 [id_supplier] => 0 [id_manufacturer] => 0 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => [upc] => 82057000 [ecotax] => 0.000000 [quantity] => 29 [minimal_quantity] => 1 [price] => 1.9 [wholesale_price] => 1.580000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-KBHC [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 0.035000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 9 [date_add] => 2023-04-19 10:00:49 [date_upd] => 2024-02-19 13:15:42 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] => [description_short] =>

Bridged pipe clamp with butterfly spanner.

Used for fixing hoover hoses, air ducts, PVC pipes and much more.

Compatible with spiral hoses (beware spiral direction) - bridged band for optimum clamping - quick installation without tools.

Stainless steel construction, waterproof and corrosion resistant.

Various sizes available.

[link_rewrite] => dust-commander-kbhc-keyed-bridge-hose-clamp [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER KBHC - Keyed Bridge Hose Clamp [available_now] => [available_later] => [id_image] => 77-382 [legend] => DUST COMMANDER KBHC - Keyed Bridge Hose Clamp [manufacturer_name] => [category_default] => Accessories [id_product_attribute] => 9 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/77-dust-commander-kbhc-keyed-bridge-hose-clamp.html [attribute_price] => 0 [price_tax_exc] => 1.9 [price_without_reduction] => 1.9 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 226 [features] => Array ( ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Bridged pipe clamp with butterfly spanner. Used for fixing hoover hoses, air ducts, PVC pipes and much more. Compatible with spiral hoses (beware spiral direction) - bridged band for optimum clamping - quick installation without tools. Stainless steel construction, waterproof and corrosion resistant. Various sizes available.
1,90 €
Add to cart
In Stock
