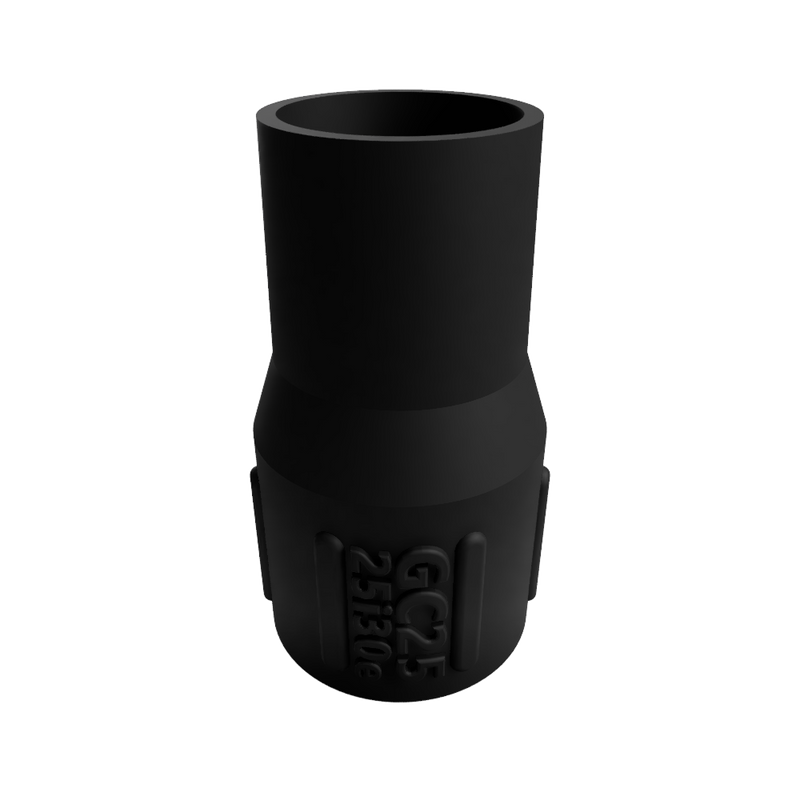

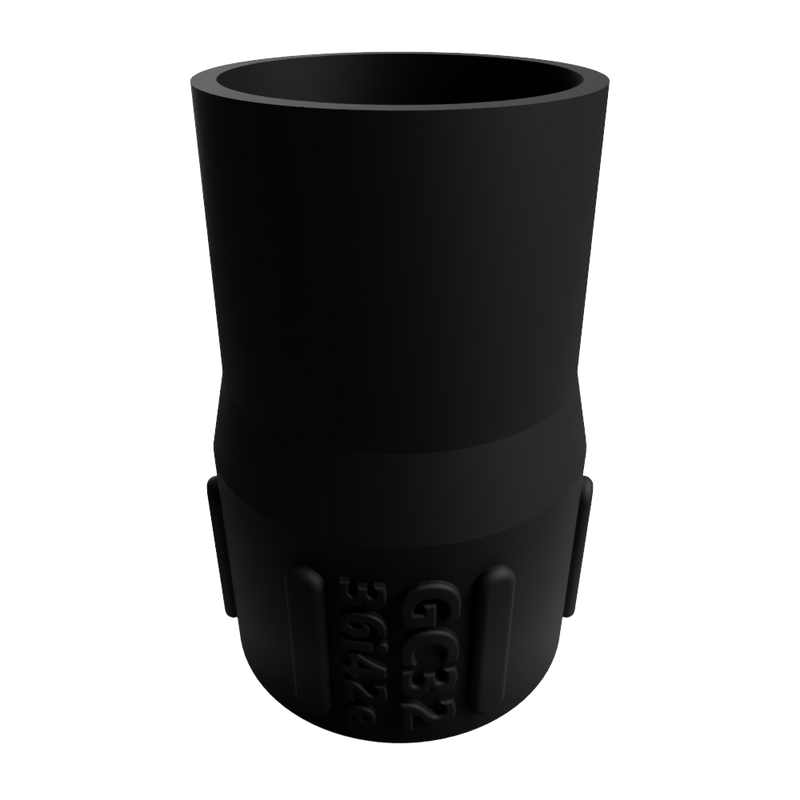

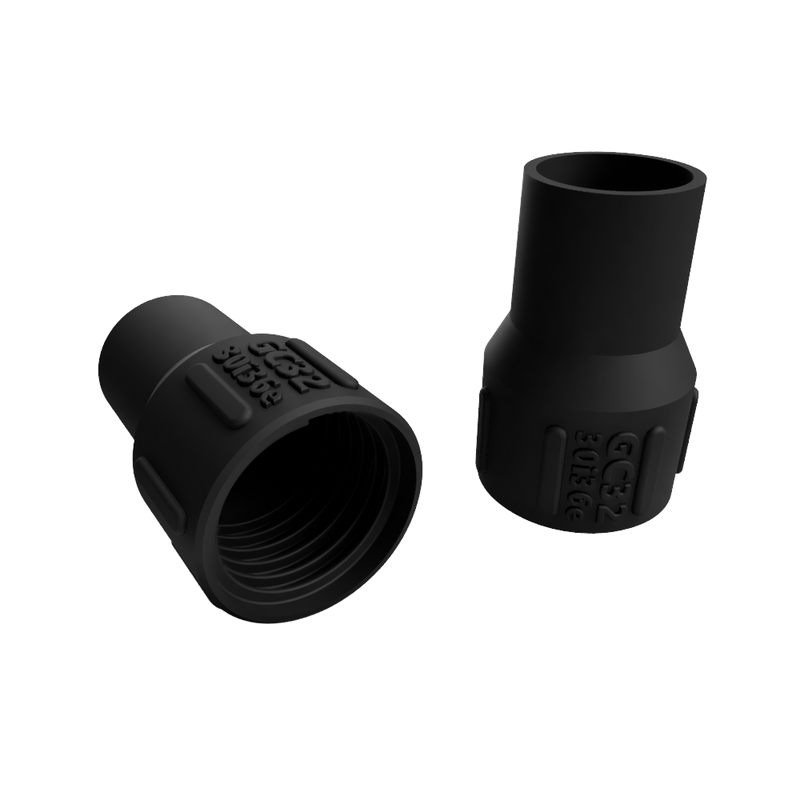

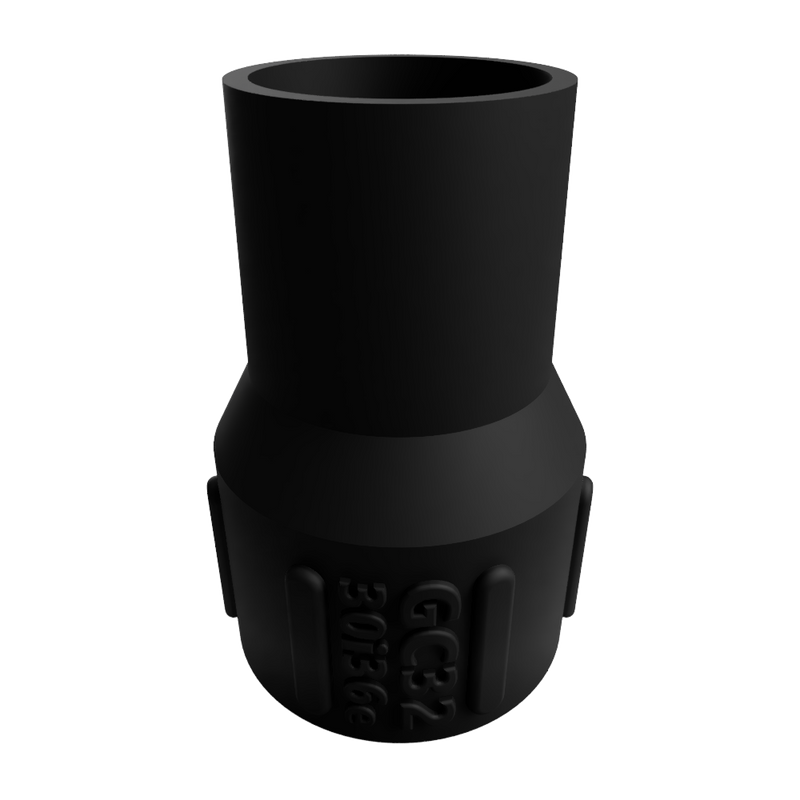

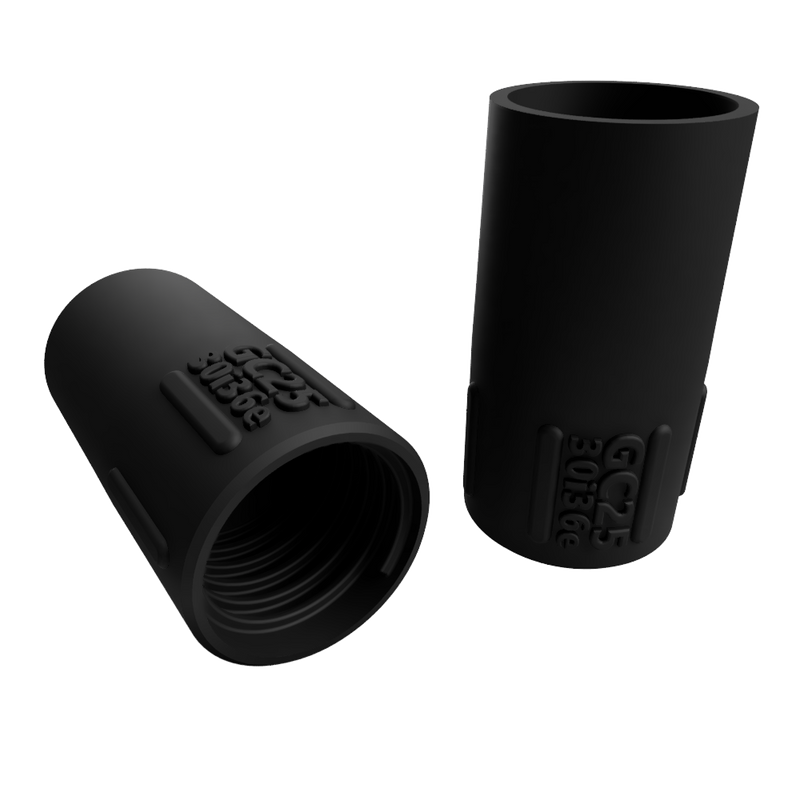

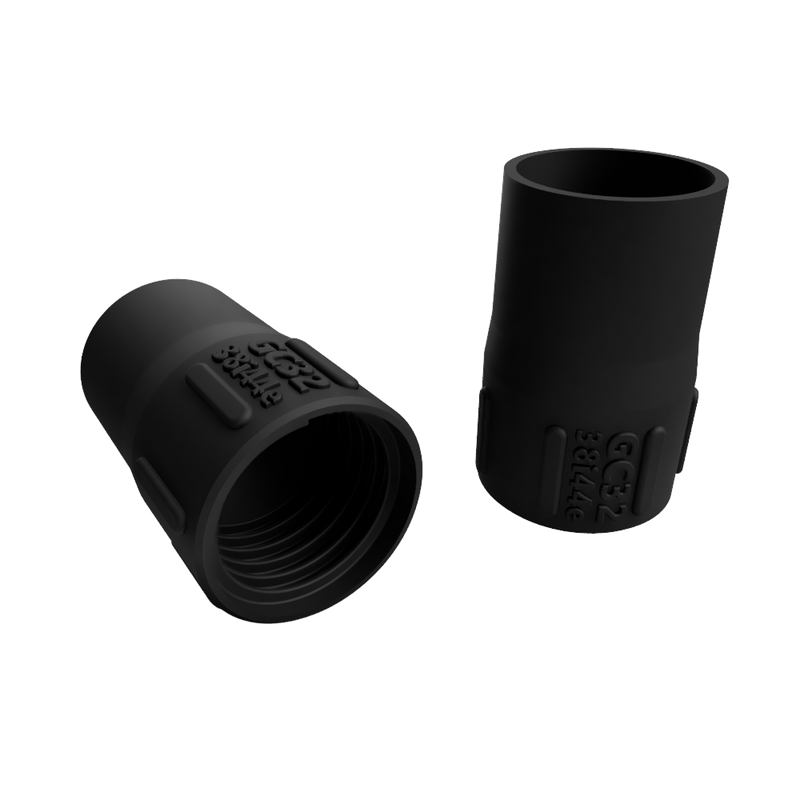

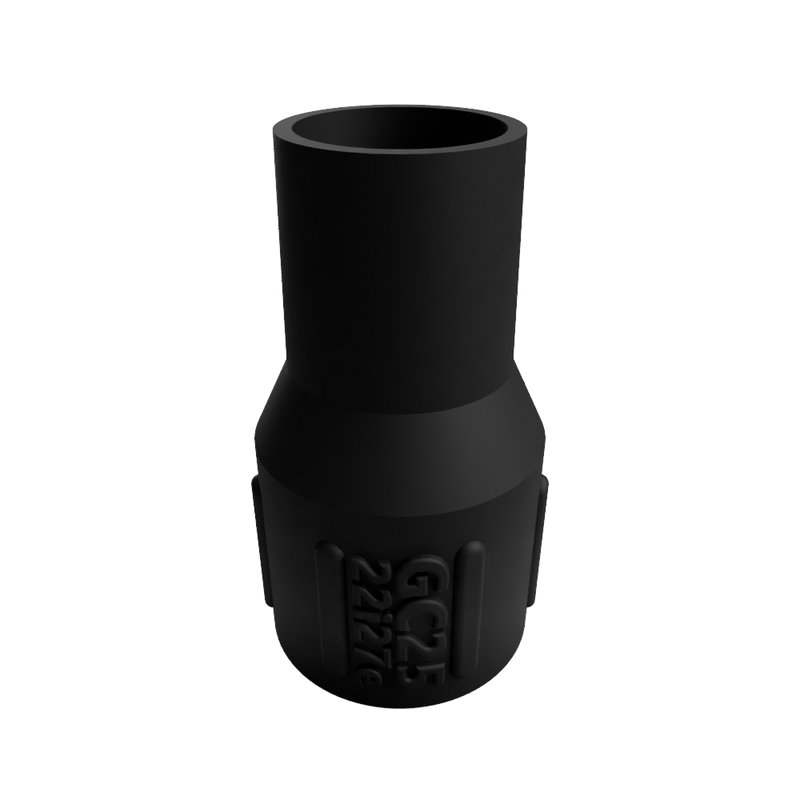

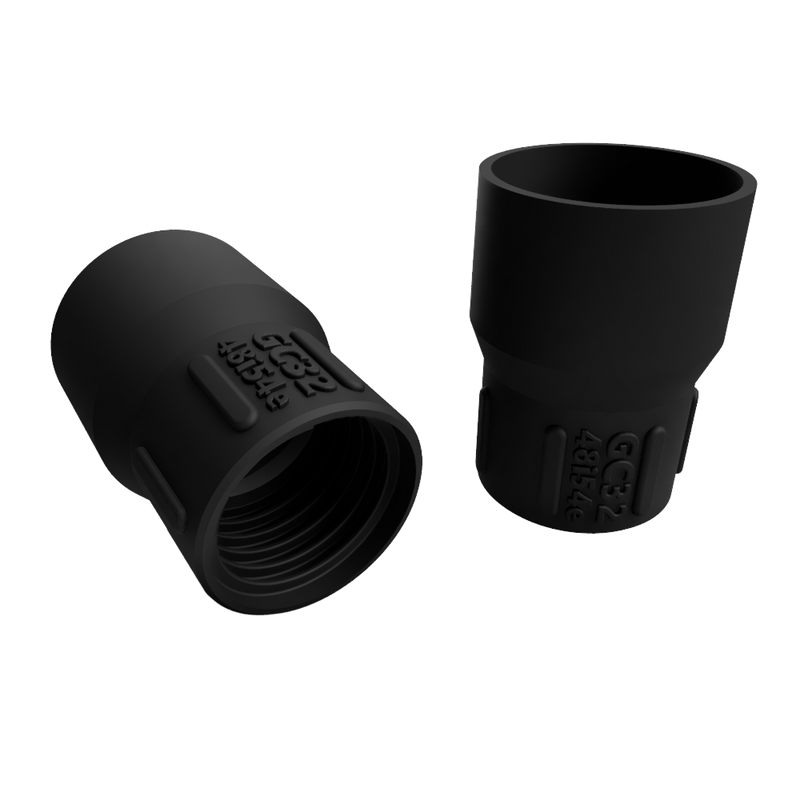

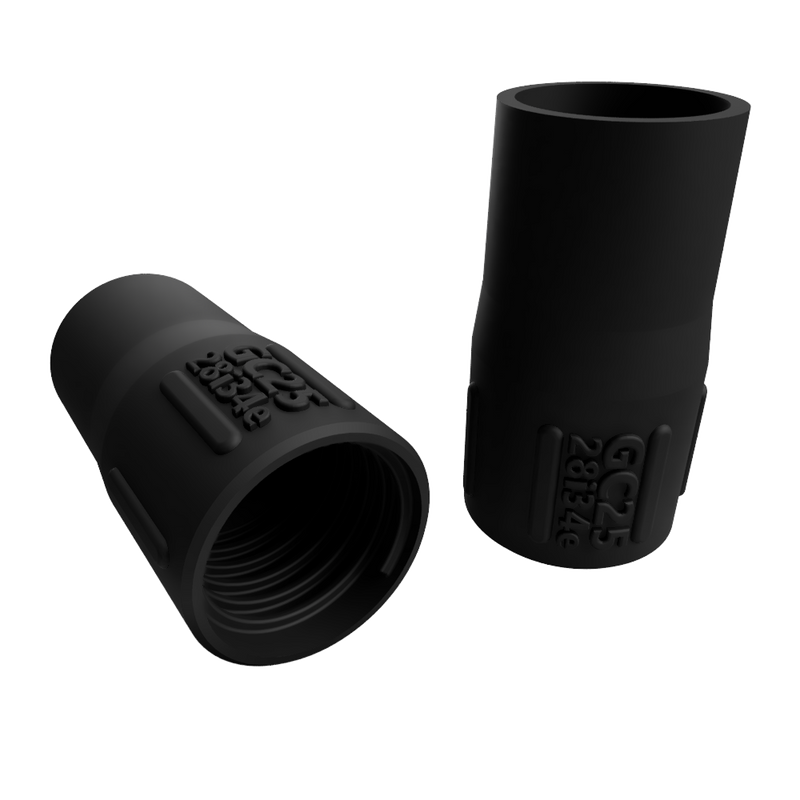

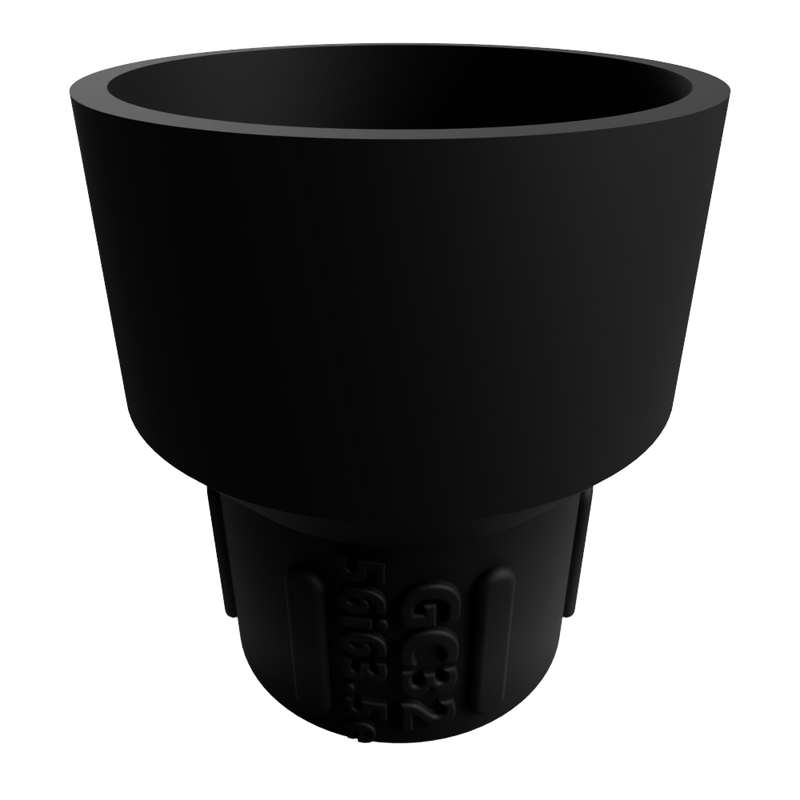

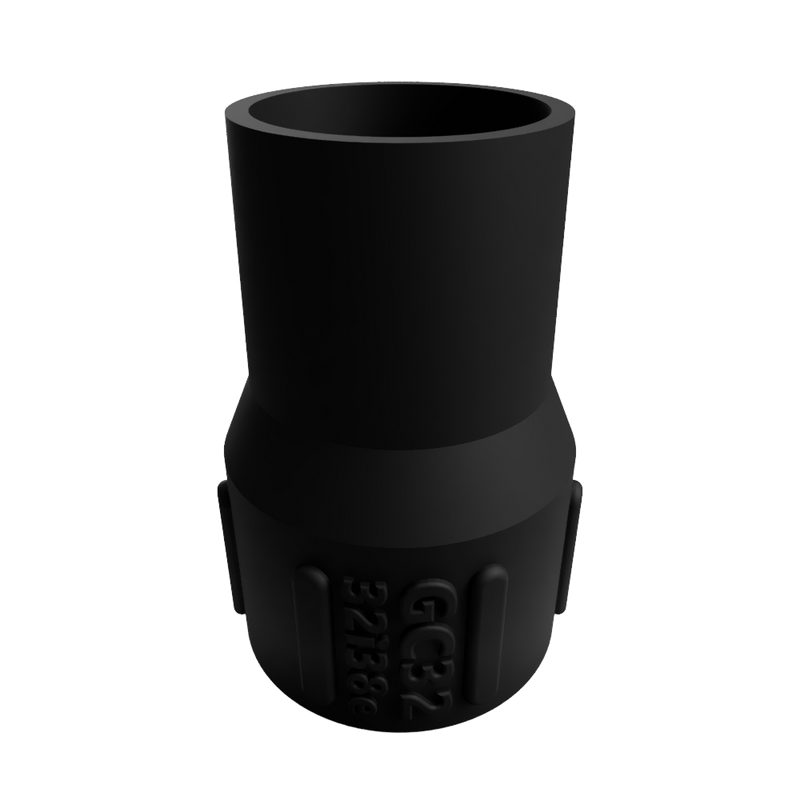

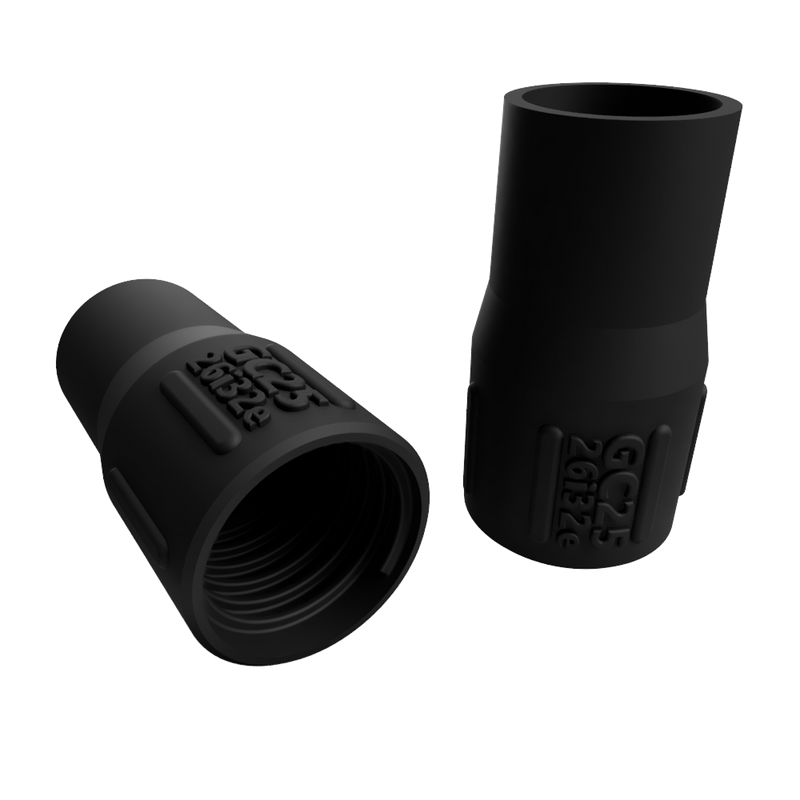

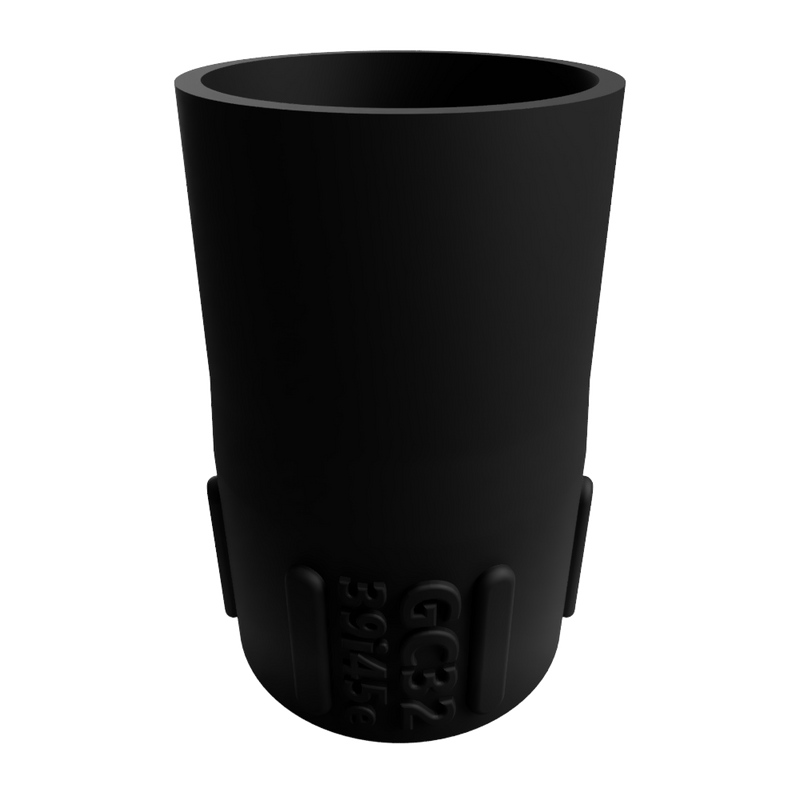

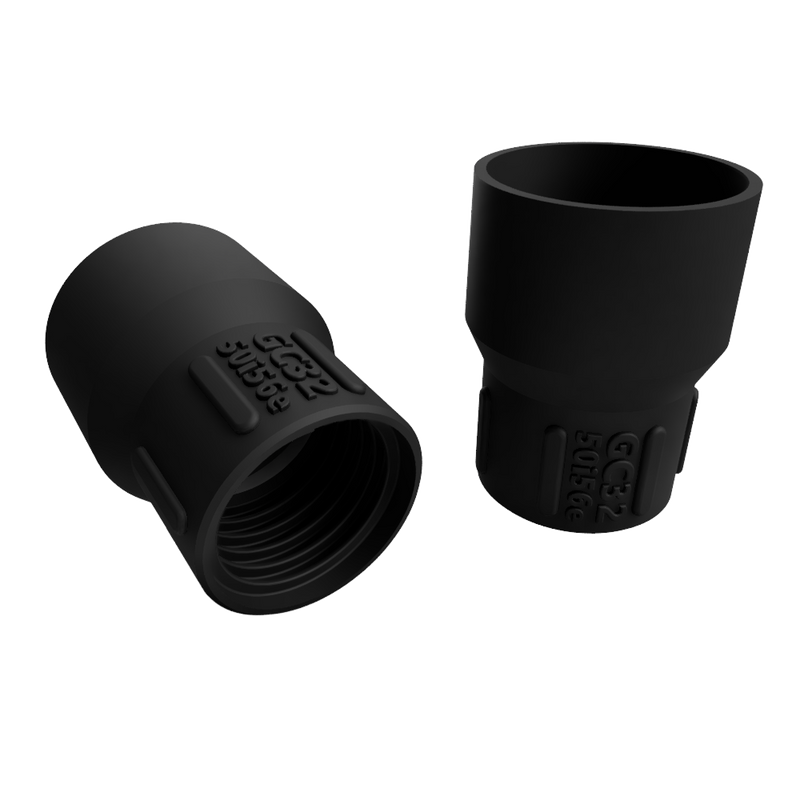

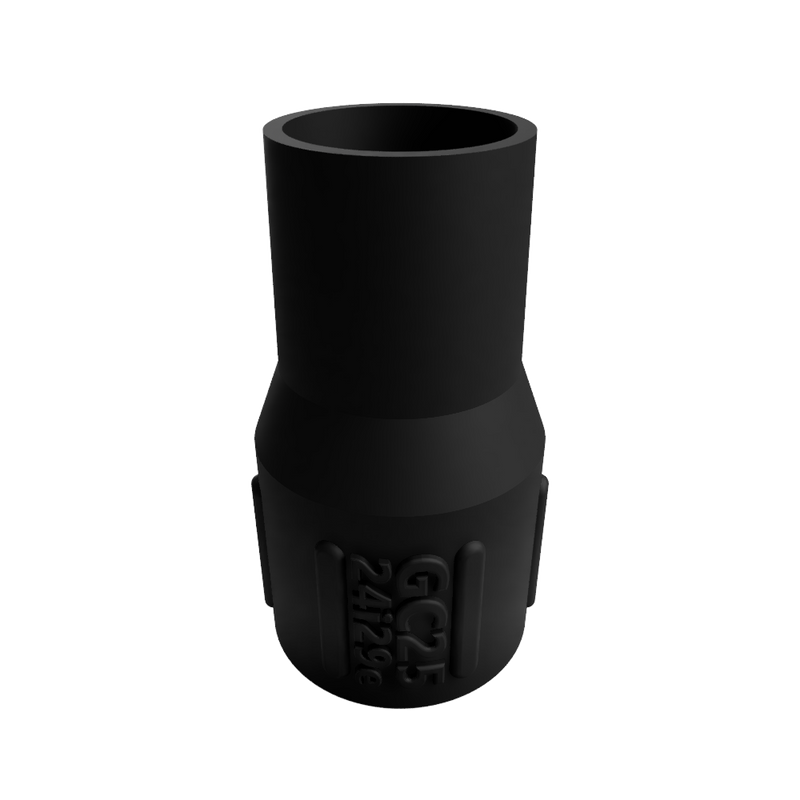

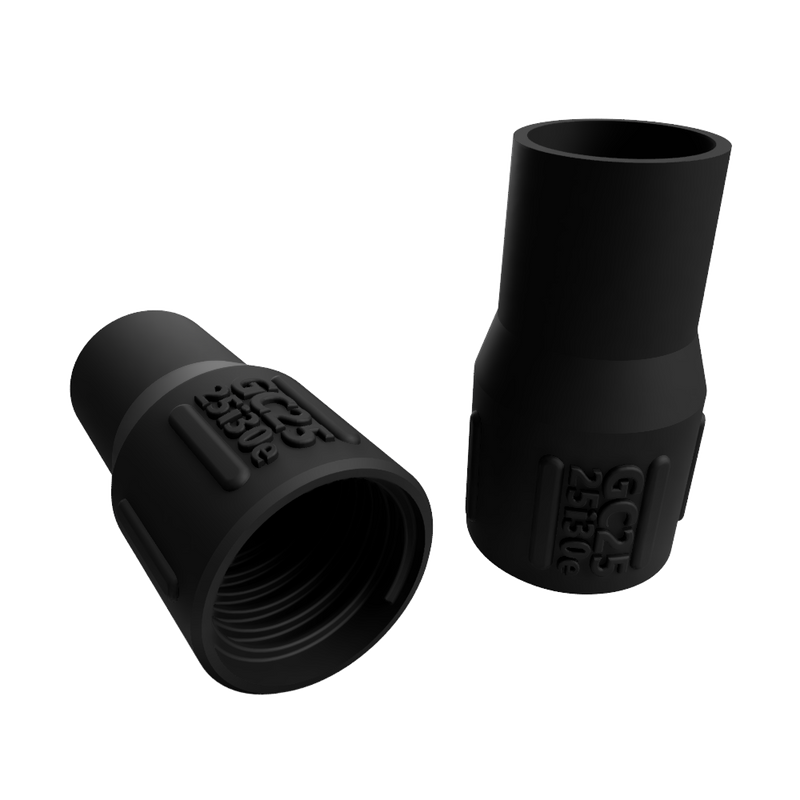

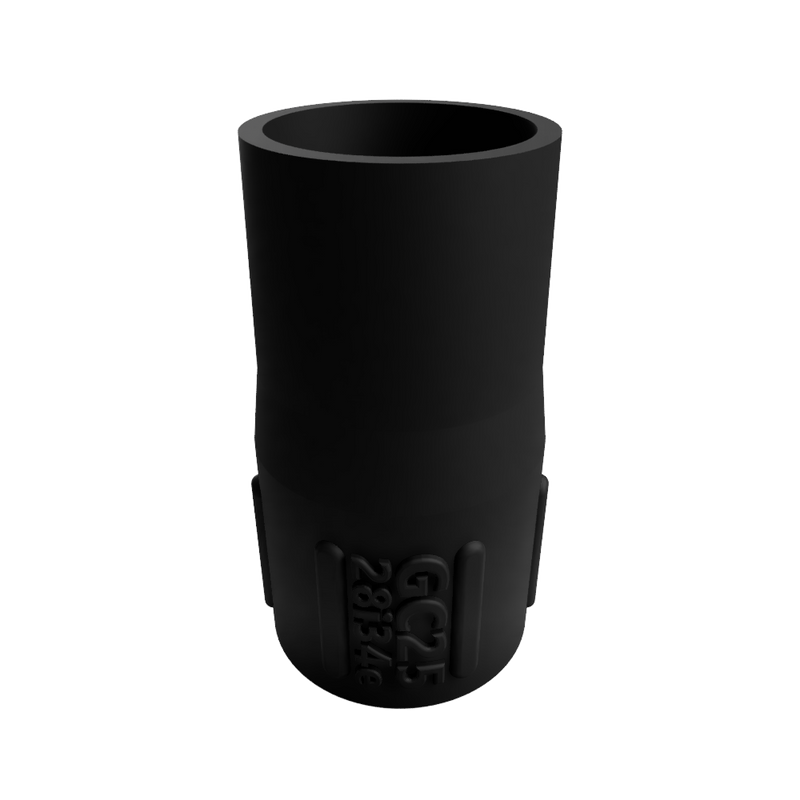

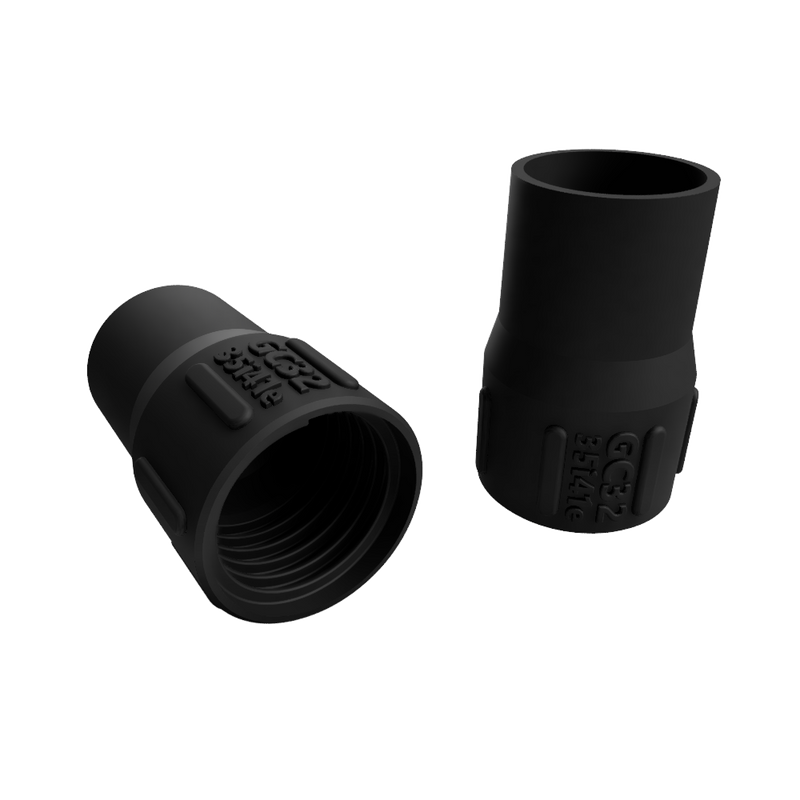

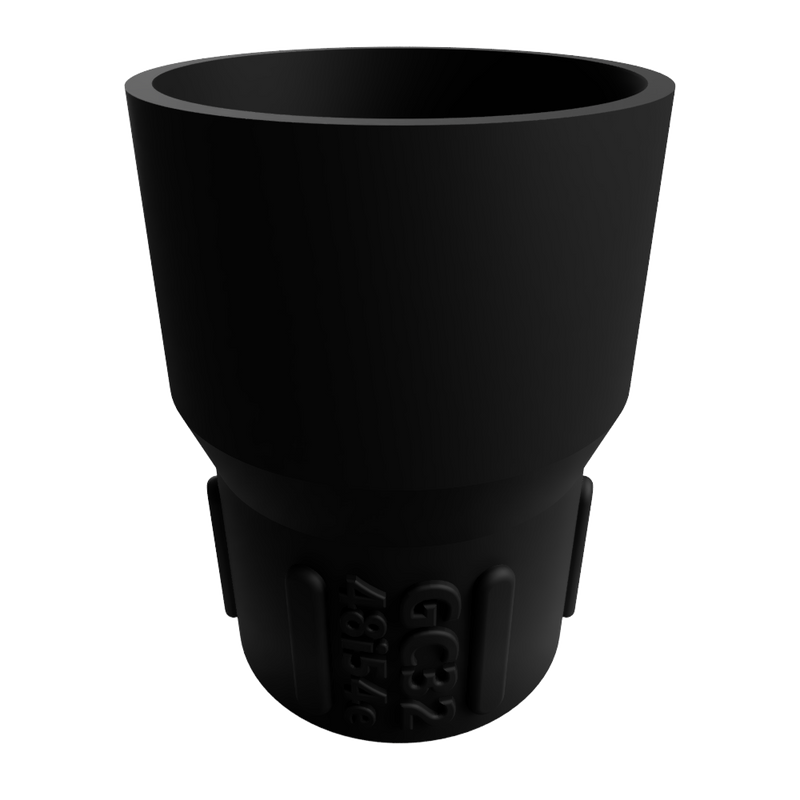

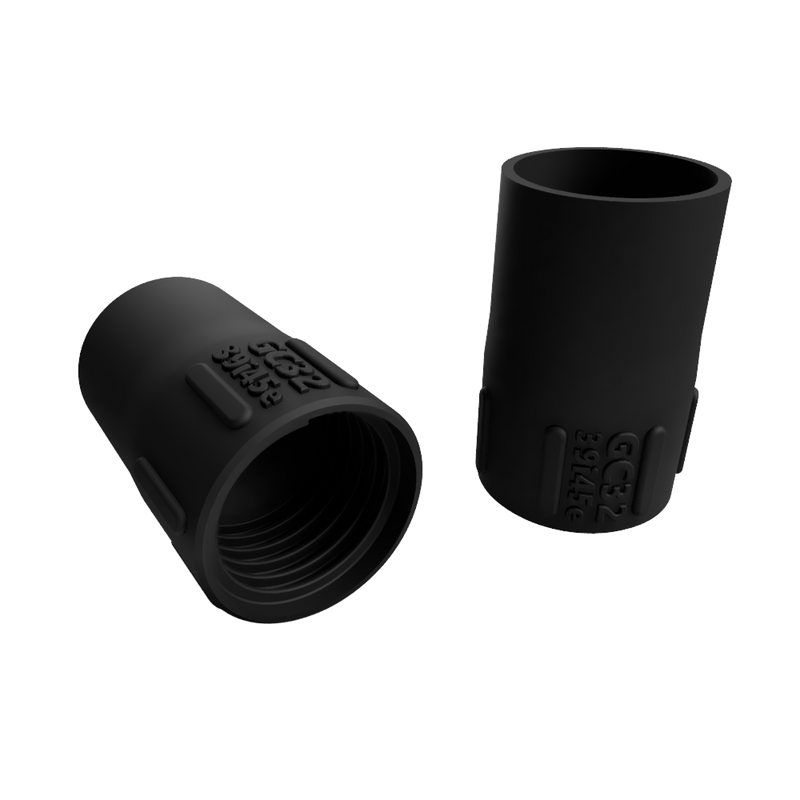

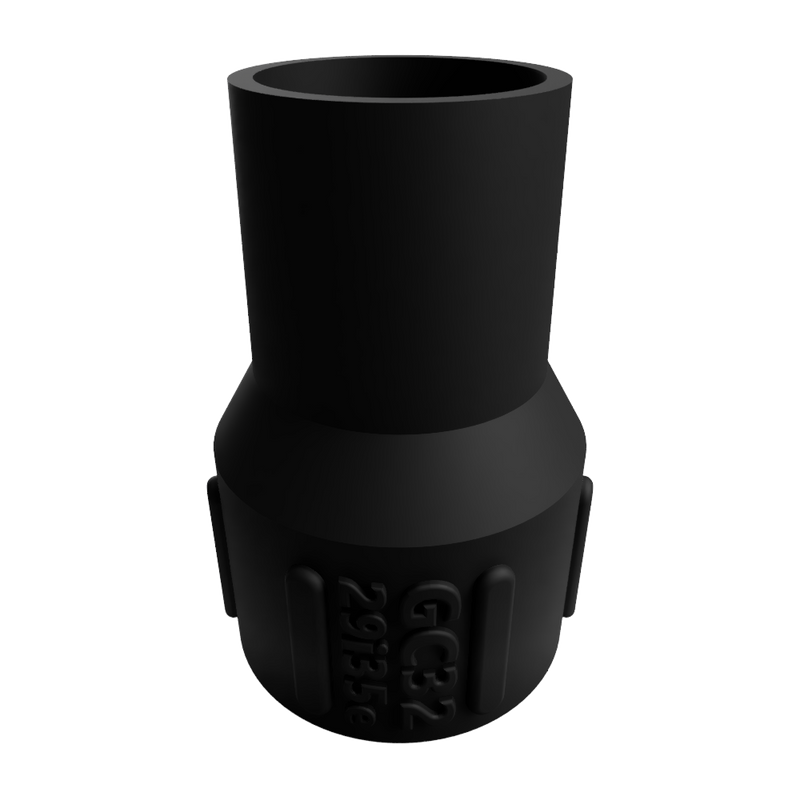

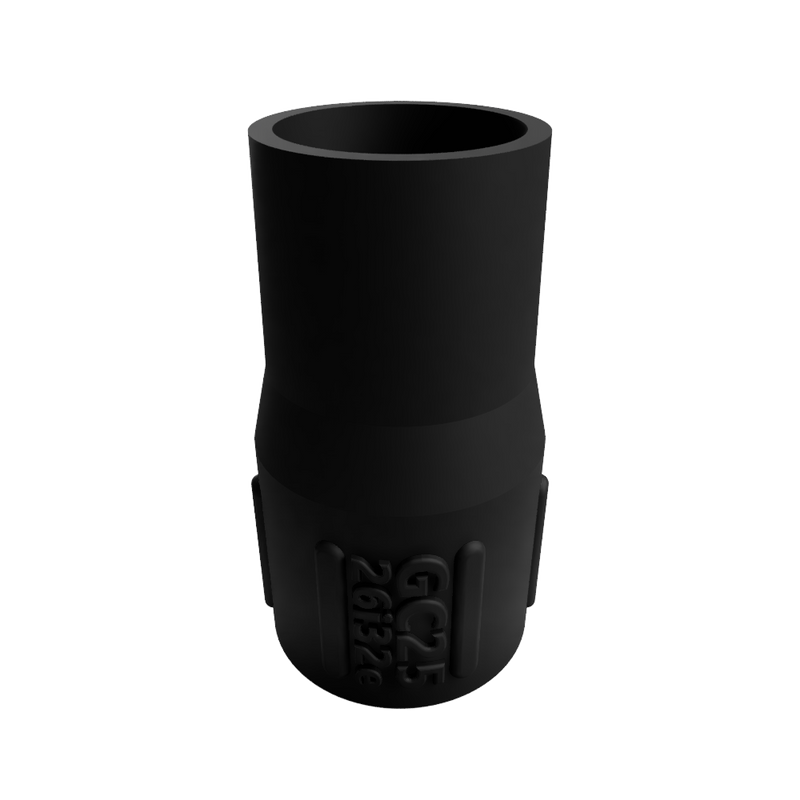

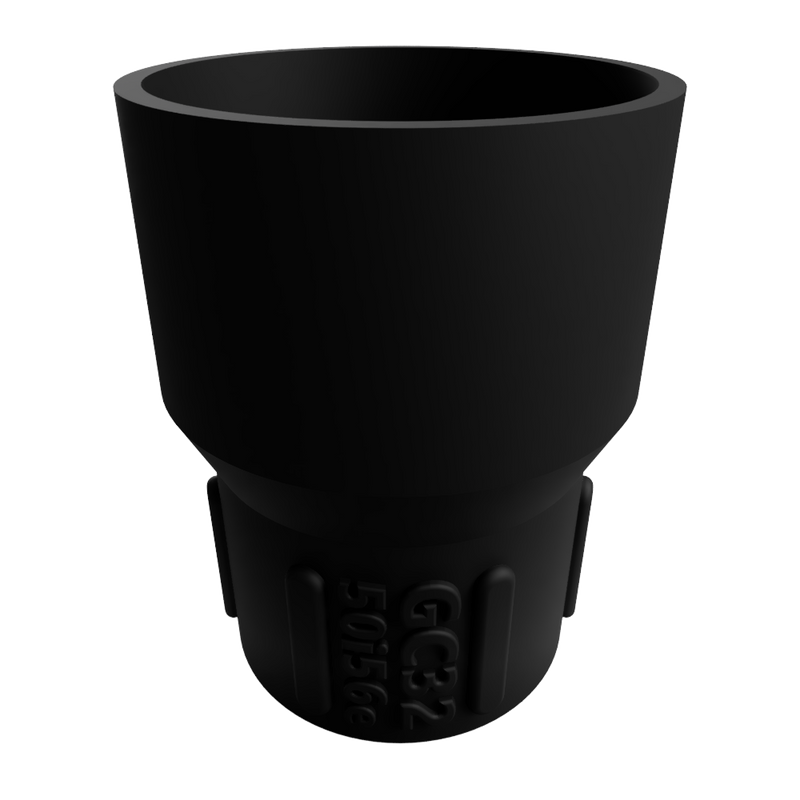

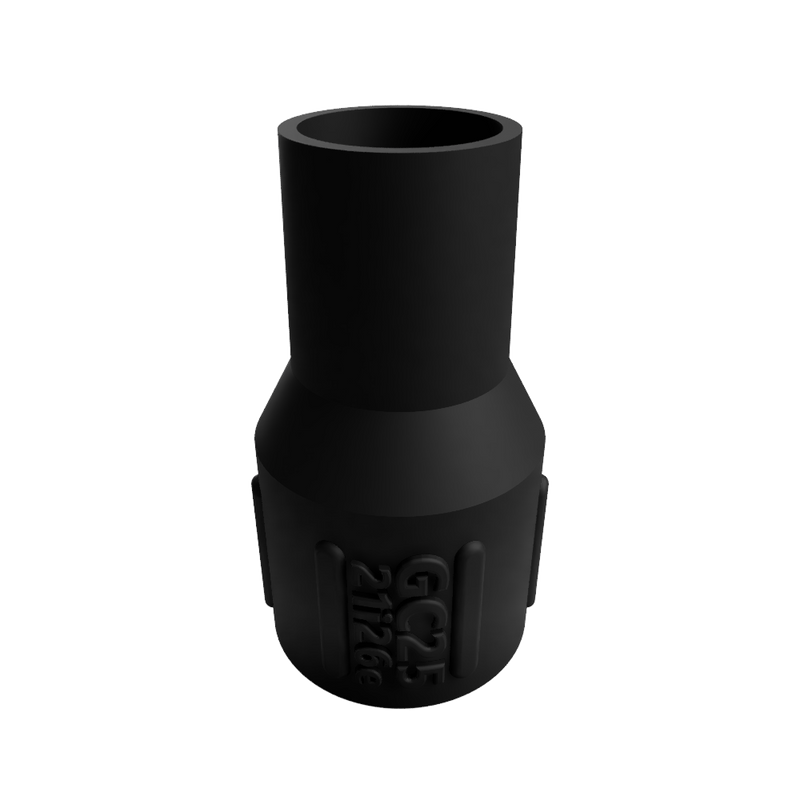

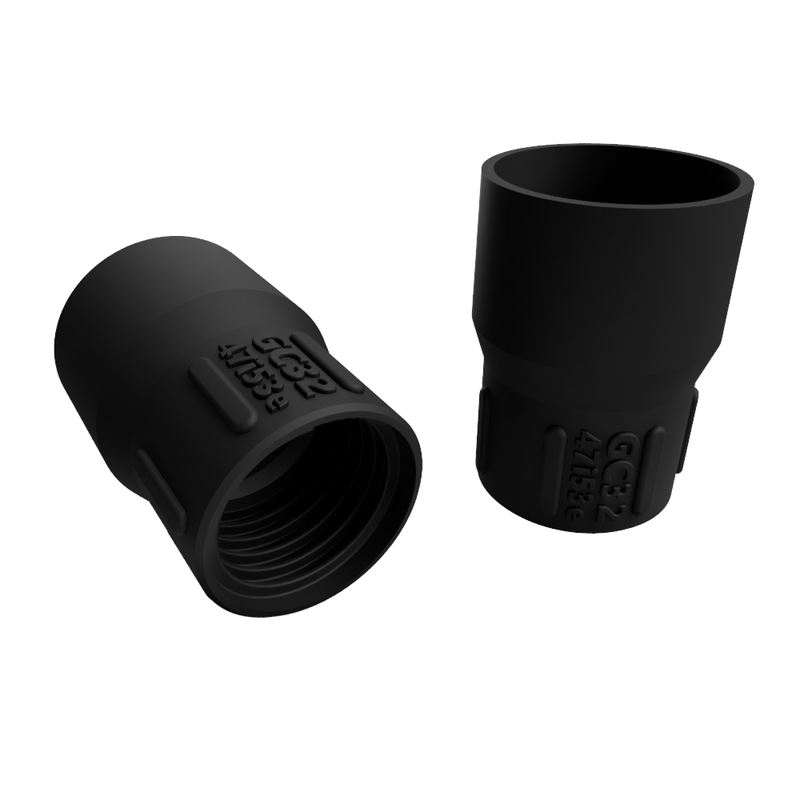

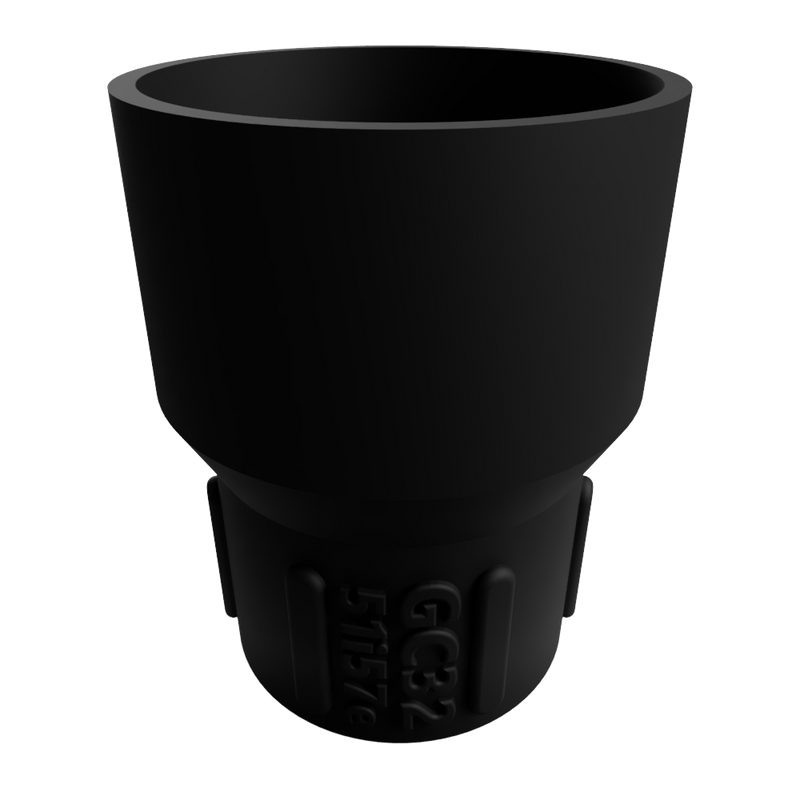

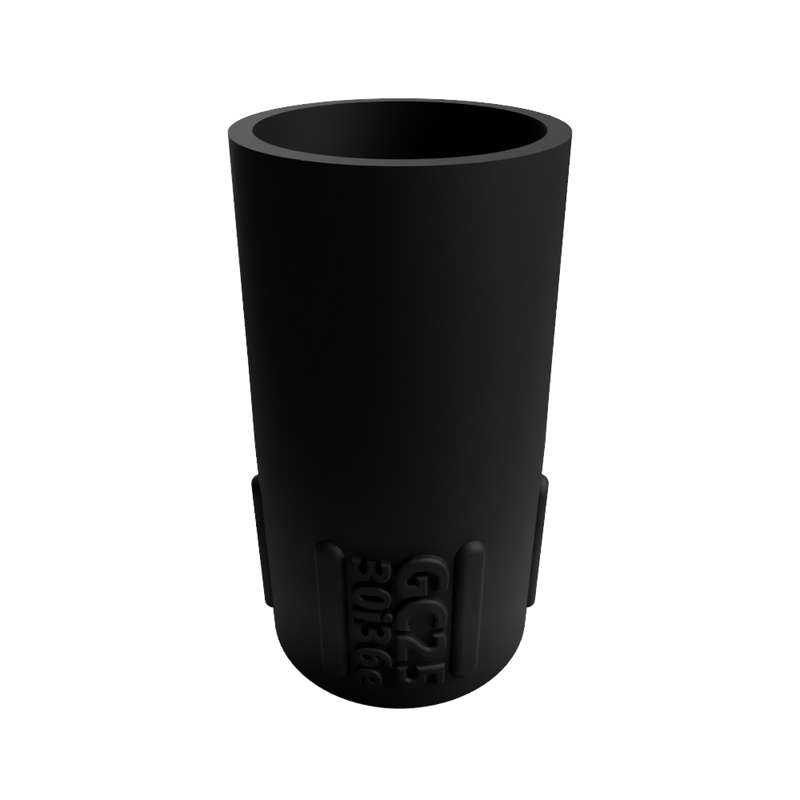

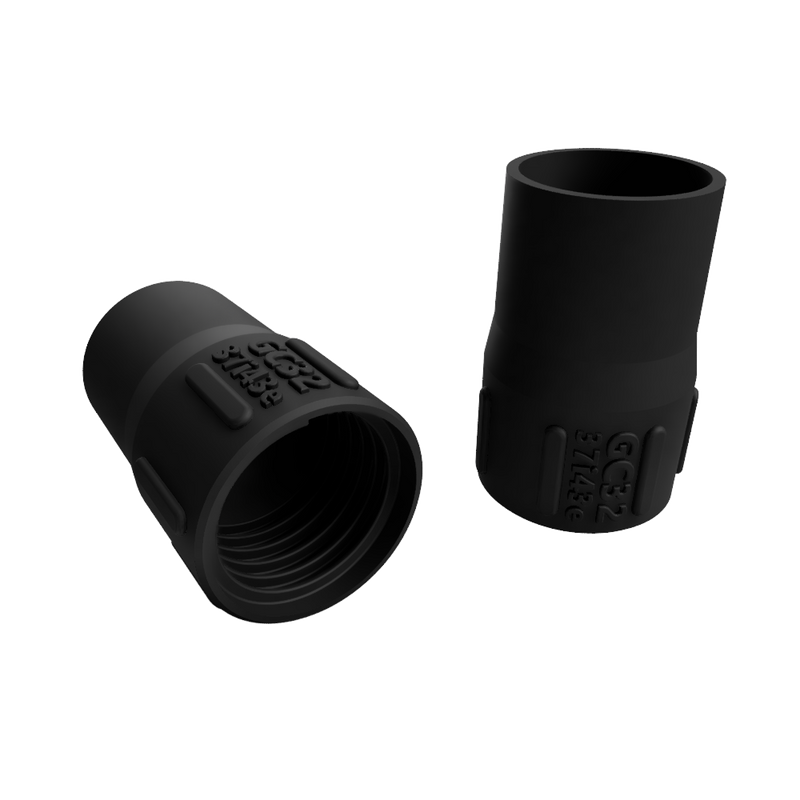

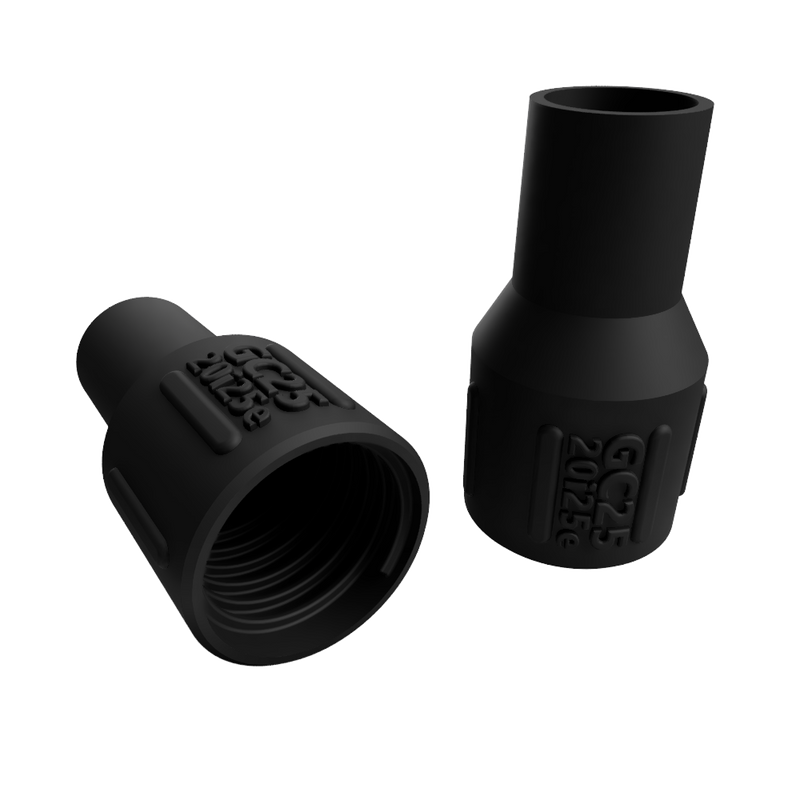

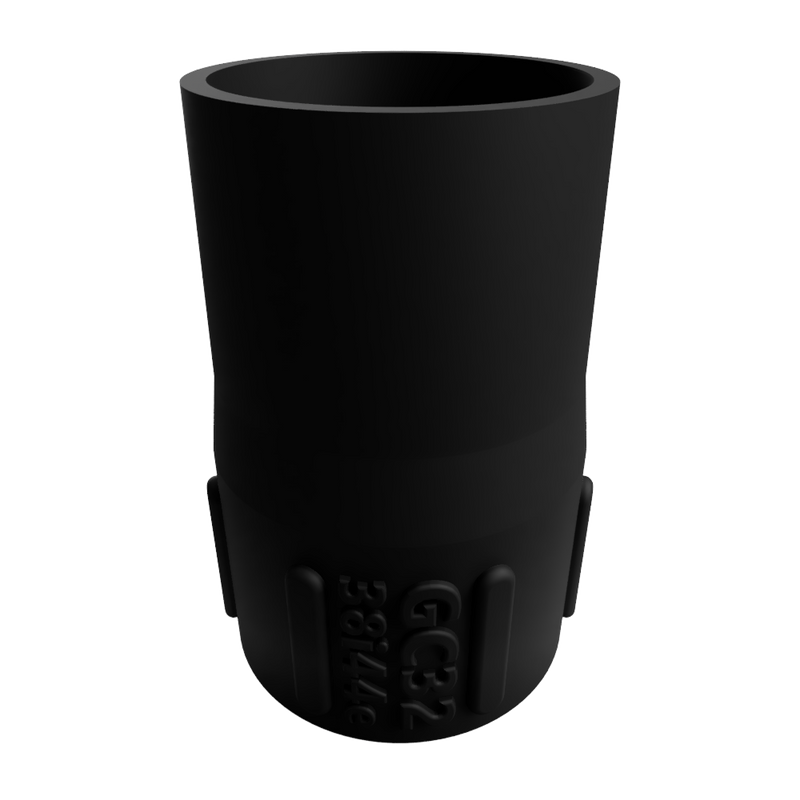

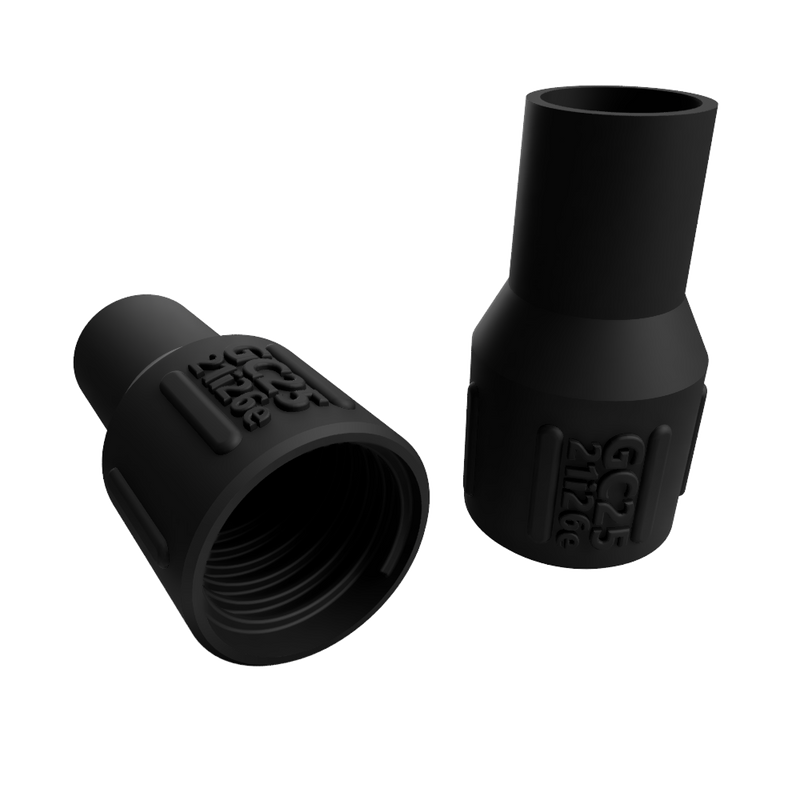

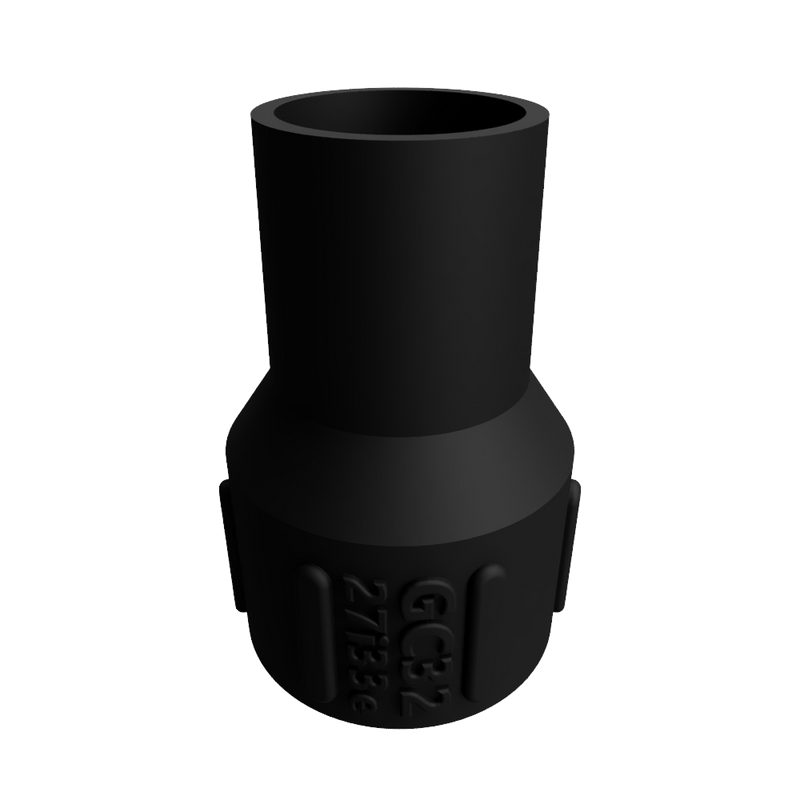

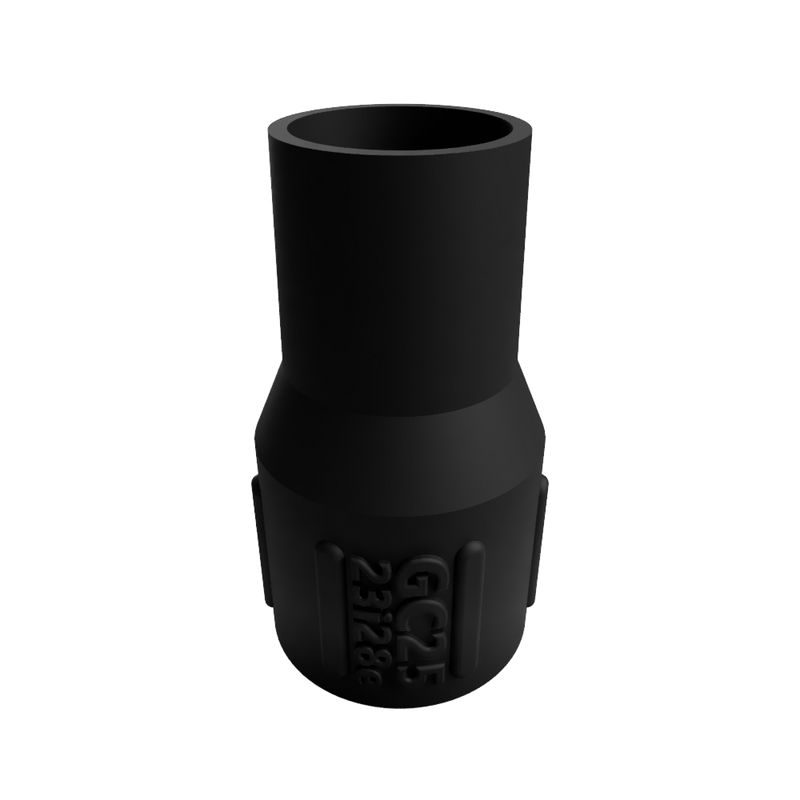

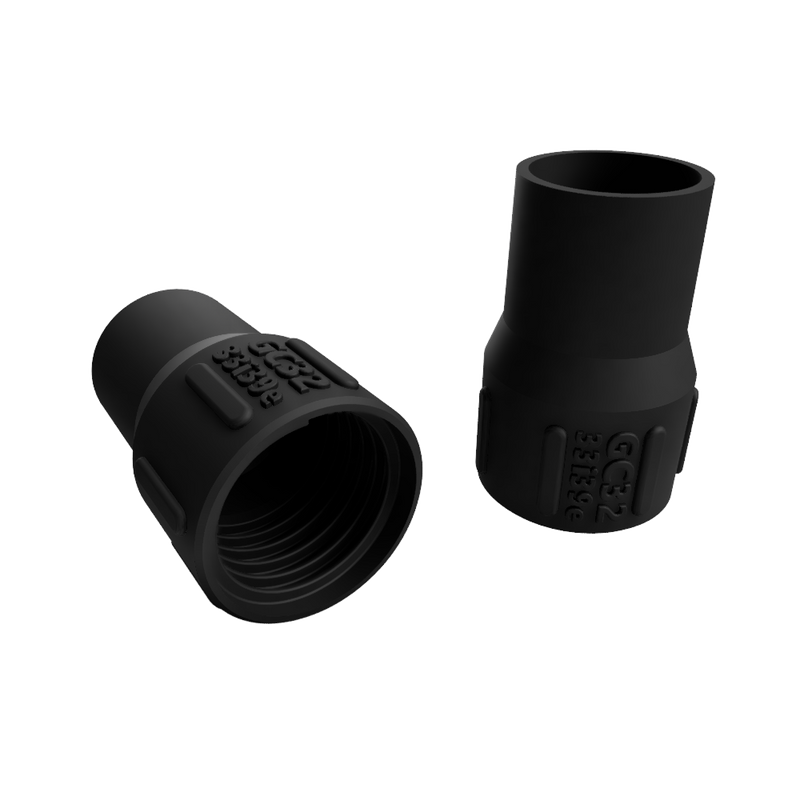

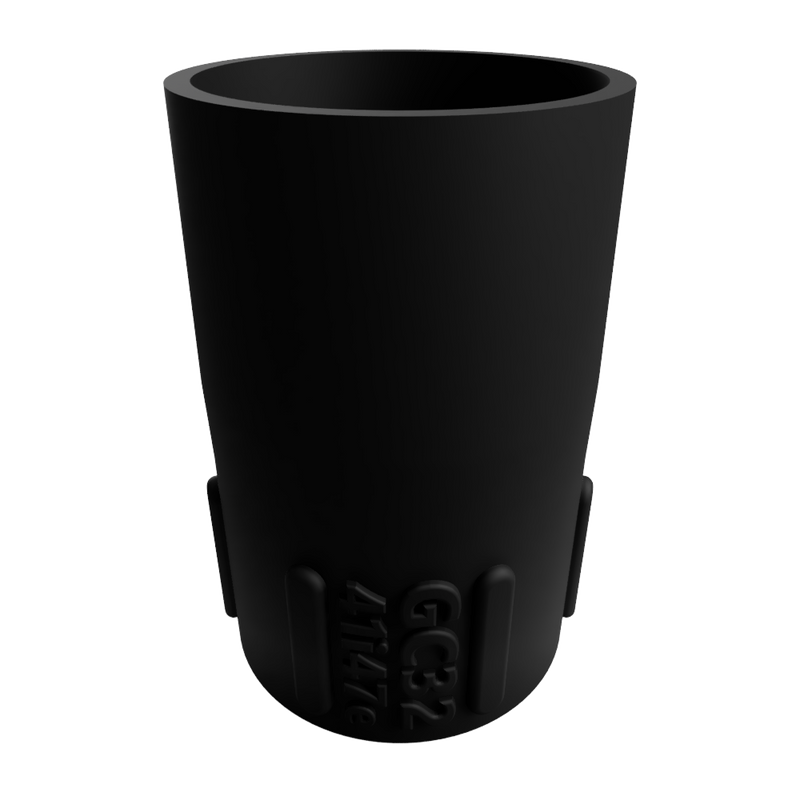

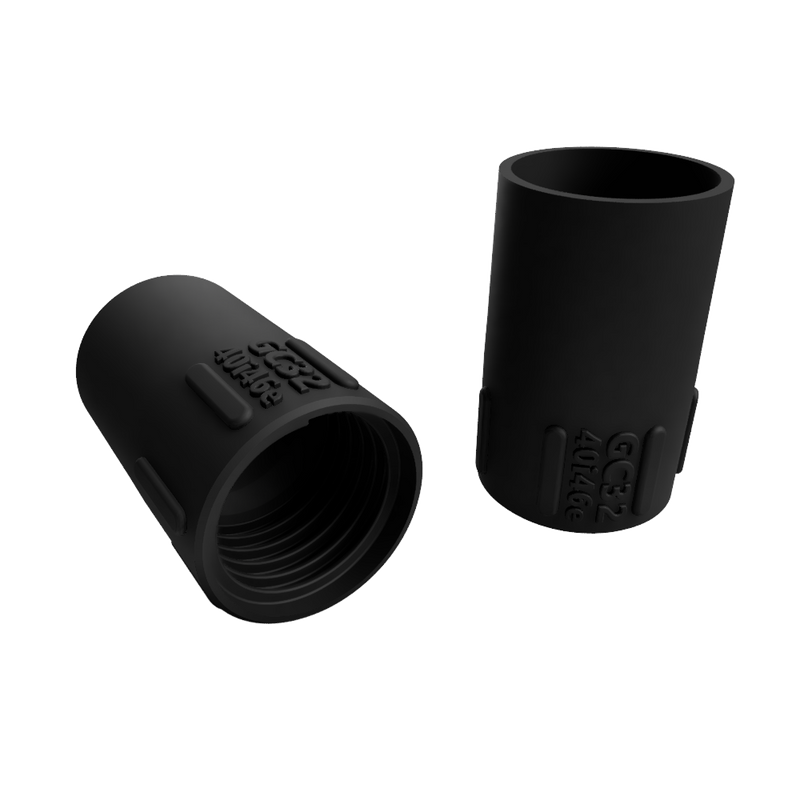

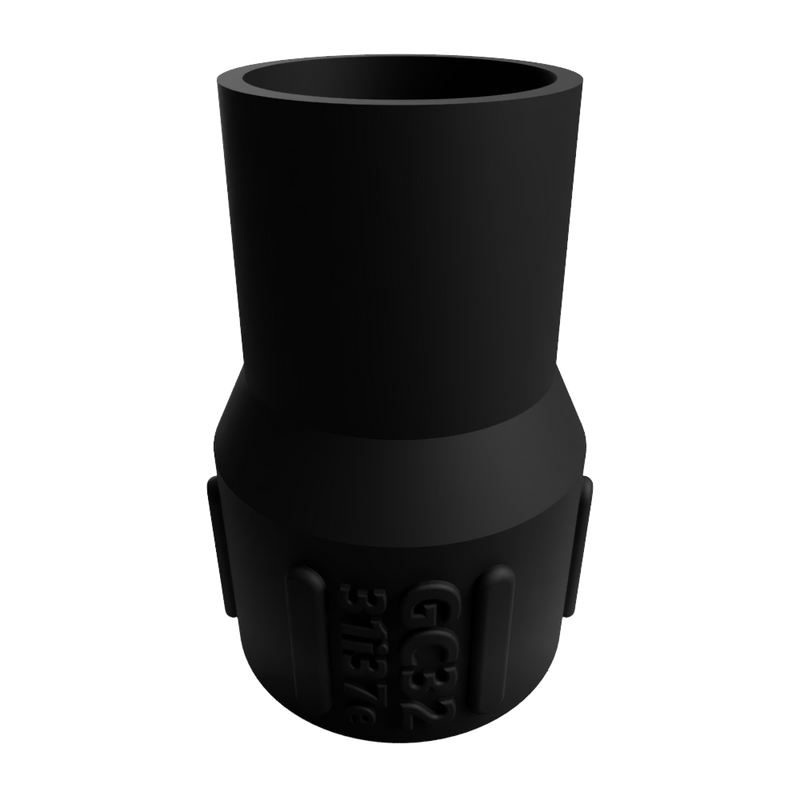

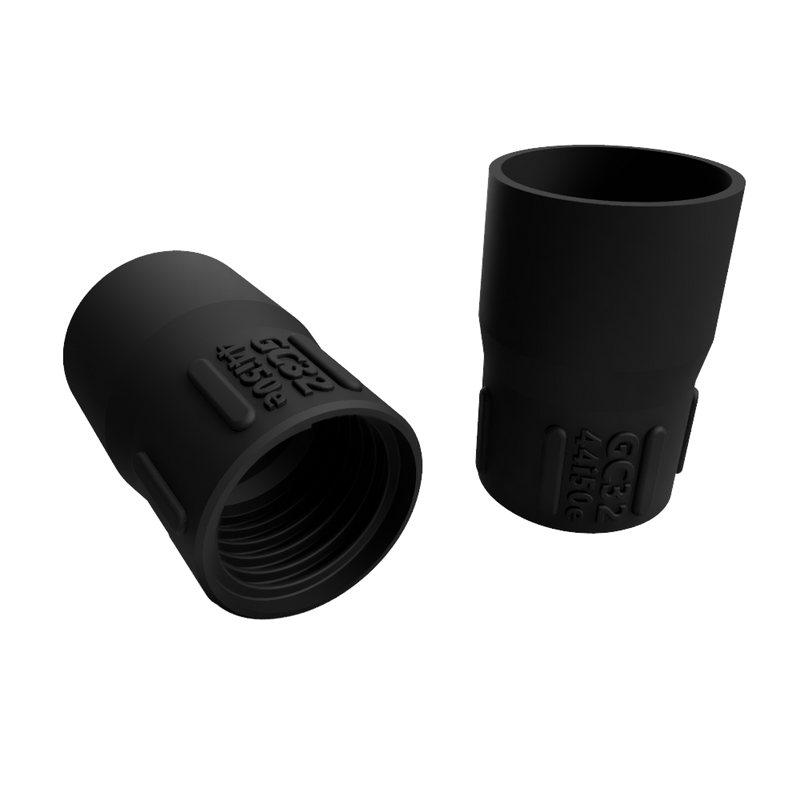

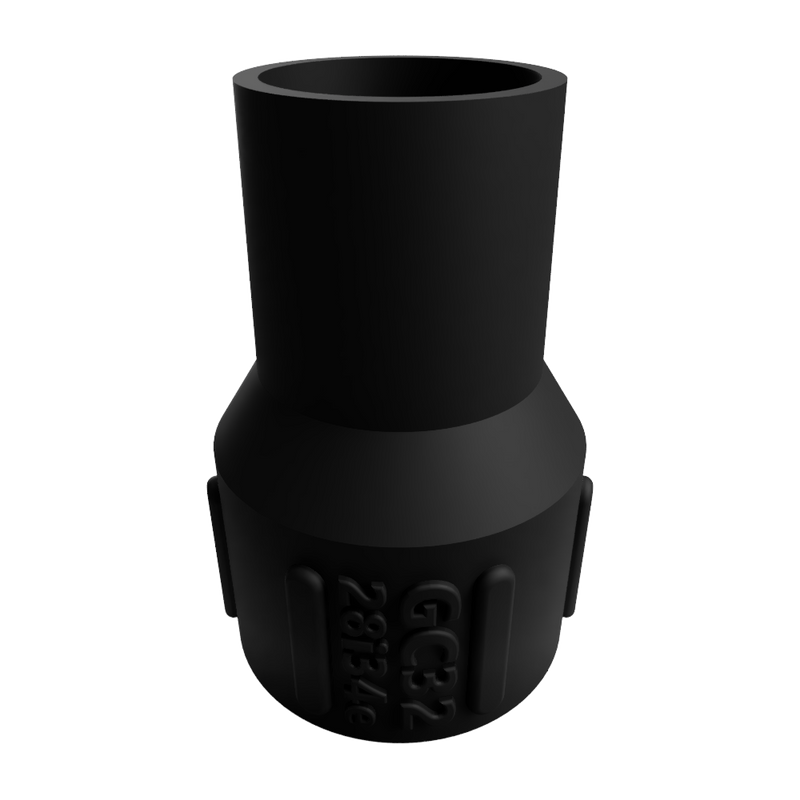

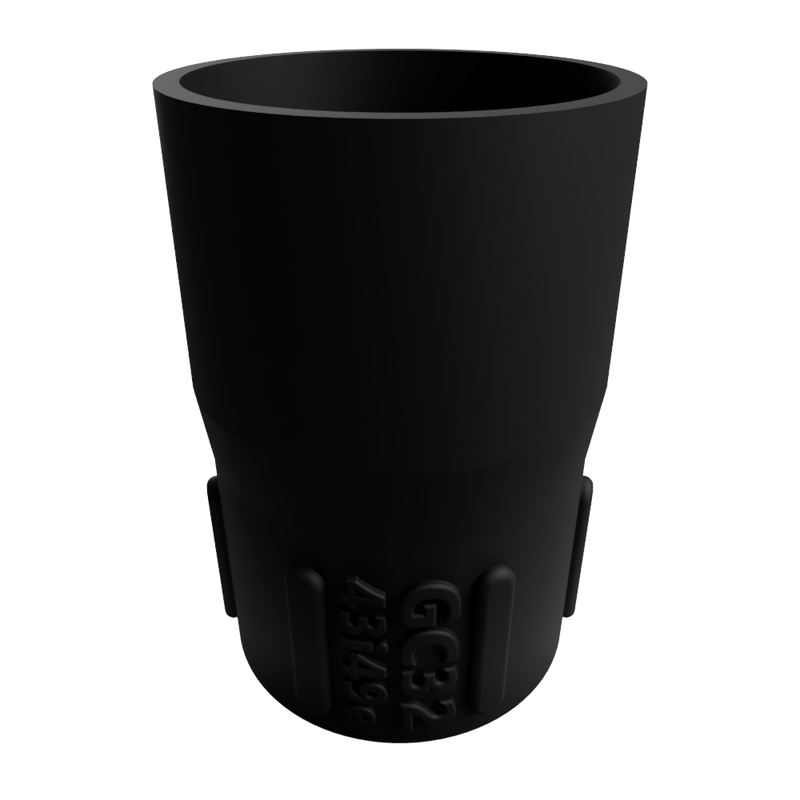

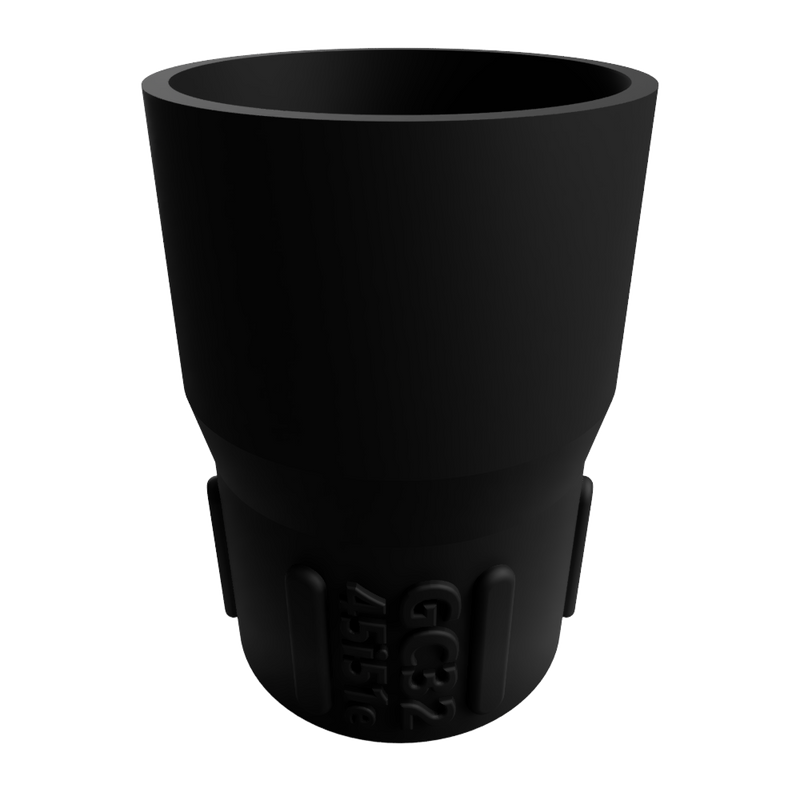

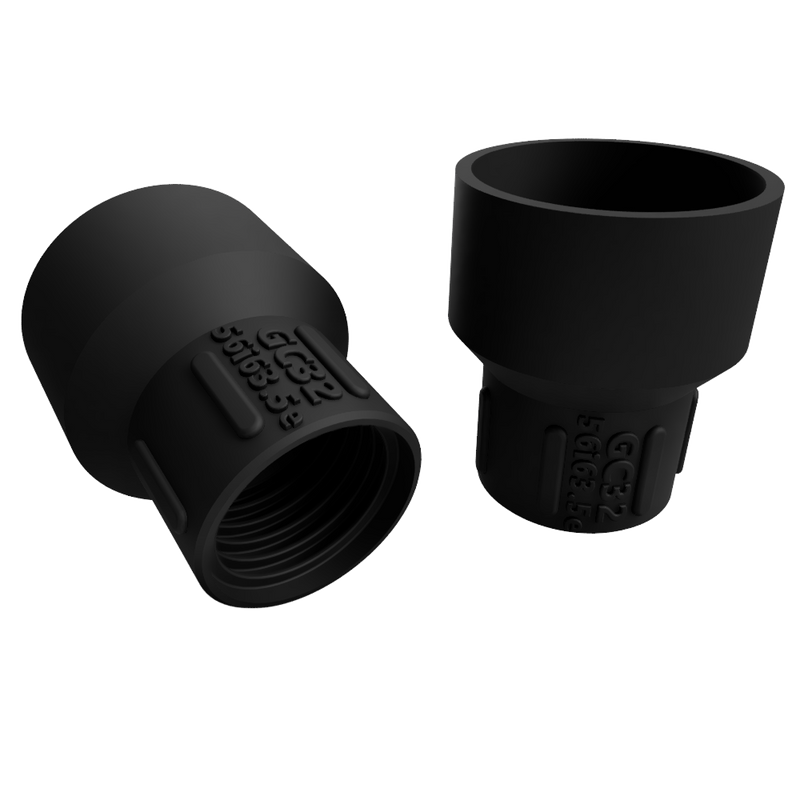

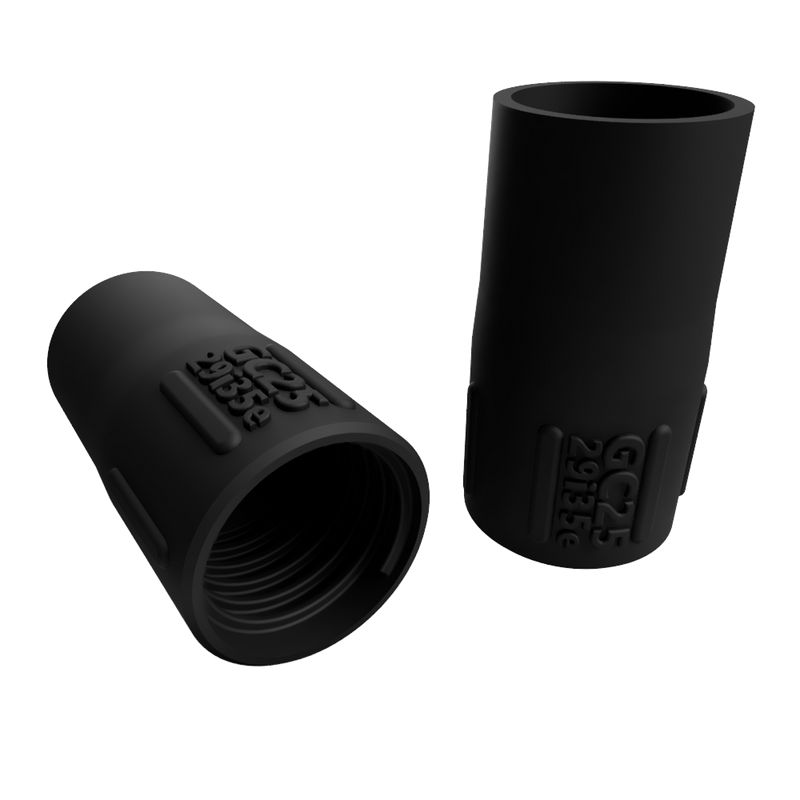

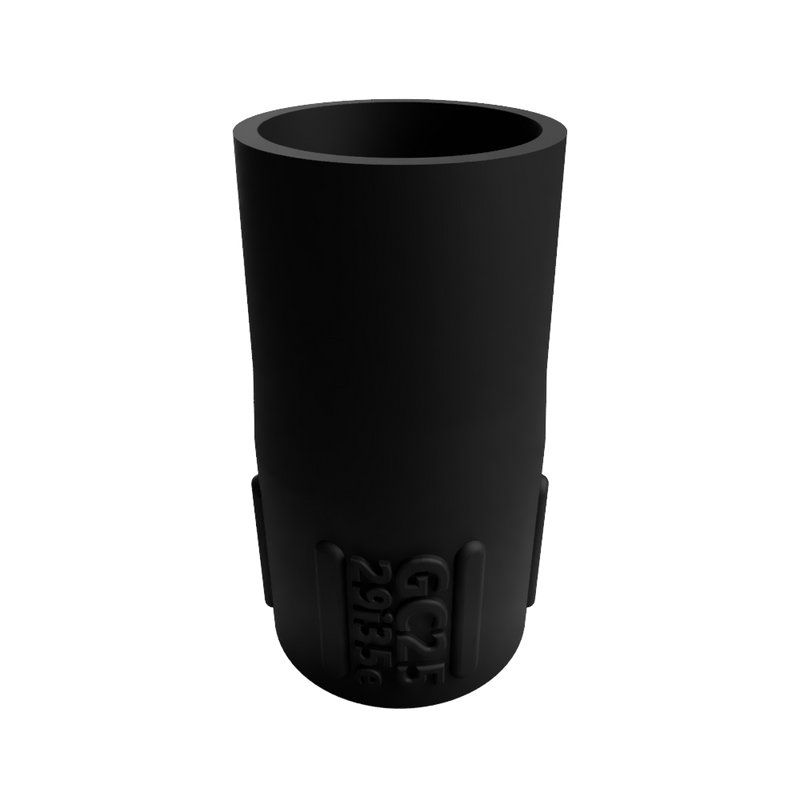

The DUST COMMANDER GCx is a customizable, 3D-printed ESD TPU screw connector, designed for seamless integration with DUST-HESD antistatic vacuum hoses. Available in 37 sizes, it ensures a perfect, airtight fit for both 25mm (HESD25) and 32mm (HESD32) hoses, making it ideal for industrial and workshop applications.
Key Features
✅ Custom Sizing – 11 sizes for HESD25 and 26 sizes for HESD32, allowing precise compatibility with a wide range of fittings.
✅ ESD-Safe Material – Made from electrically conductive TPU (Shore 92A, <10^6 ohms), ensuring static dissipation for safe use in sensitive environments.
✅ 3D FDM Printed – Offers durability, flexibility, and impact resistance for long-lasting performance.
✅ Soft Screw-On Cuff – Provides a secure, leak-proof connection to DUST-HESD hoses.

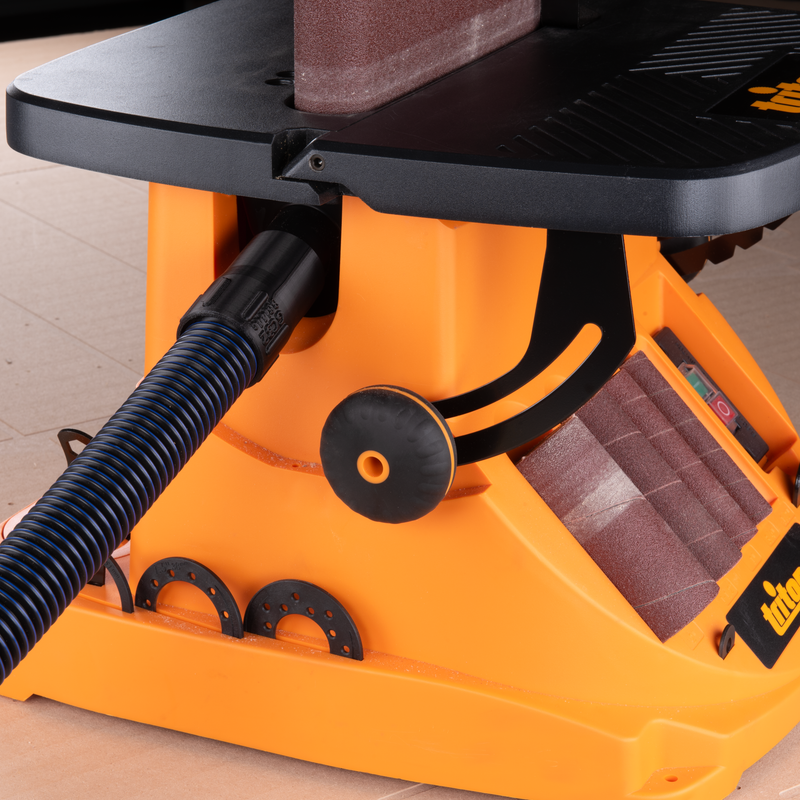

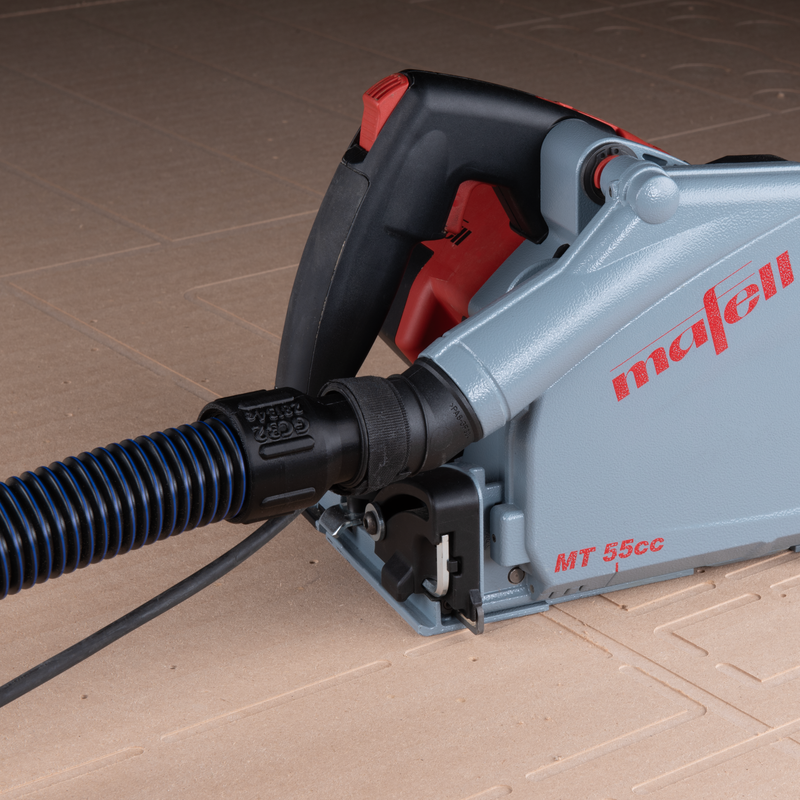

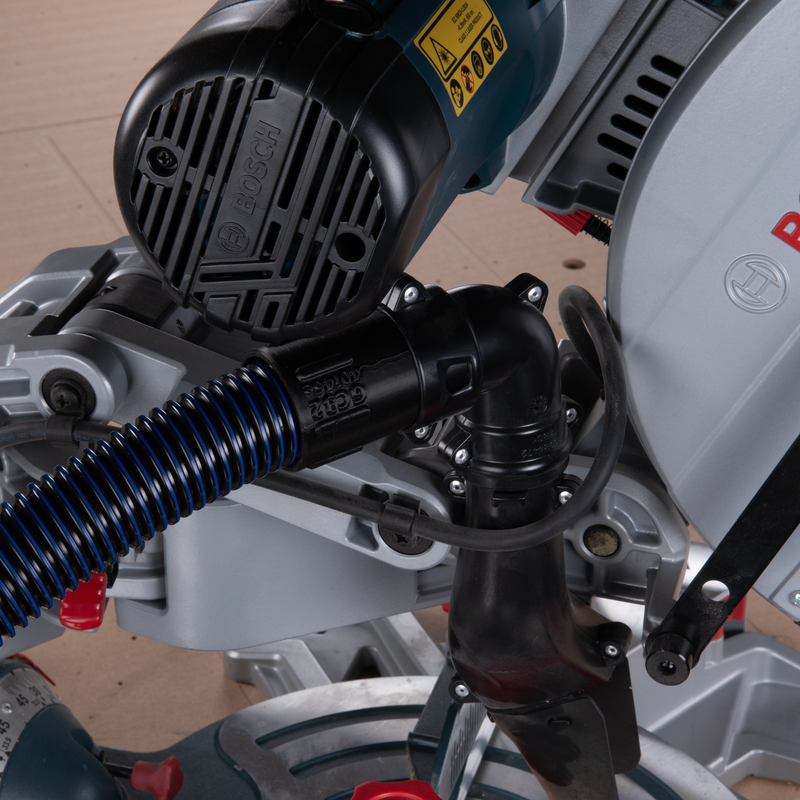

✅ Versatile Compatibility – Suitable for industrial vacuum cleaners, textile machines, woodworking machines, granulate conveyors, and apparatus construction.
Technical Specifications
| Feature | Specification |
|---|---|
| Material | Electrically Conductive TPU (Shore 92A) |
| Manufacturing Process | 3D FDM Printing |
| Surface Resistance | <10^6 ohms (antistatic) |
| Temperature Range | -20°C to +60°C |
| Color | Black |
| Compatibility | DUST-HESD25 & DUST-HESD32 hoses |
| Sizing System | GCXX-YYiZZe (see below for details) |
How to Choose the Right Reference
To select the correct GCx connector, follow these steps:
- Determine your hose model: HESD25 (25mm) or HESD32 (32mm).
- Identify the required internal (YY) and external (ZZ) diameters of the nozzle.
-
Use the part number format: GCXX-YYiZZe
- XX: Nominal hose diameter (25 for HESD25, 32 for HESD32).
- YY: Internal diameter of the nozzle (in mm).
- ZZ: External diameter of the nozzle (in mm).
Example:

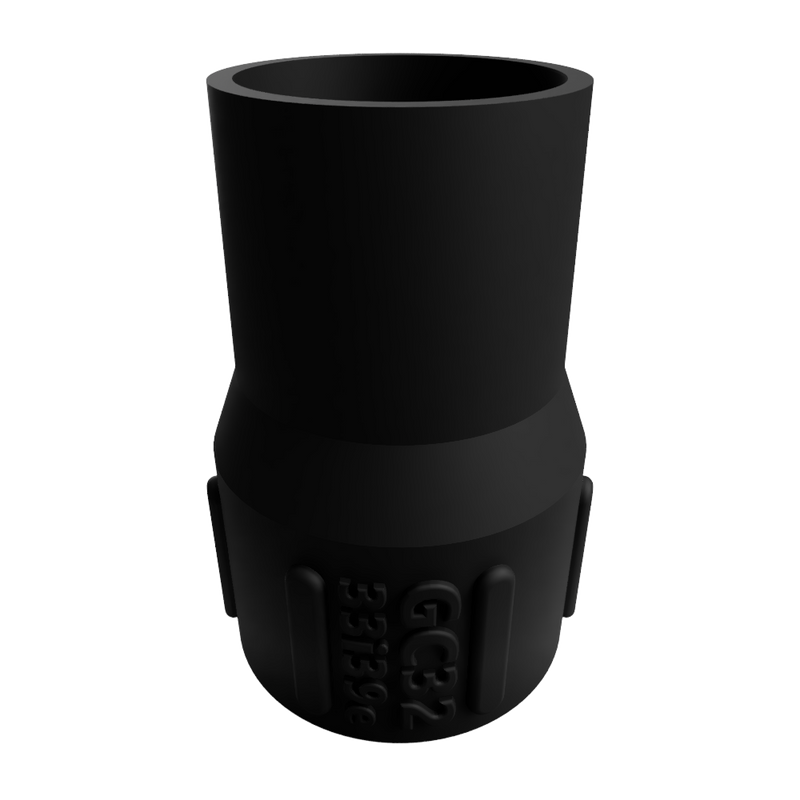

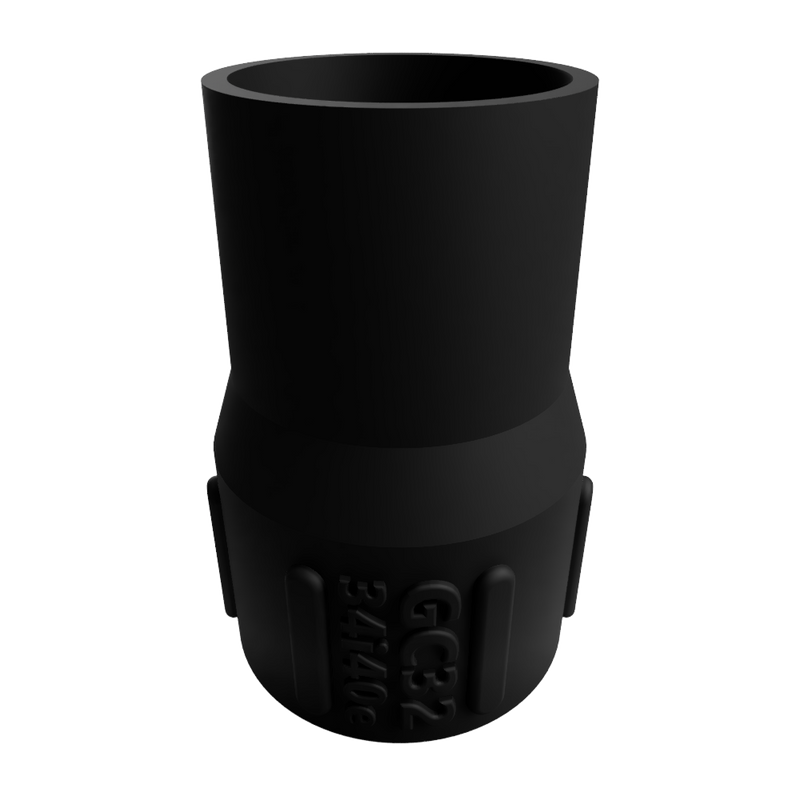

- GC32-34i40e = 32mm hose (HESD32), 34mm internal diameter, 40mm external diameter.

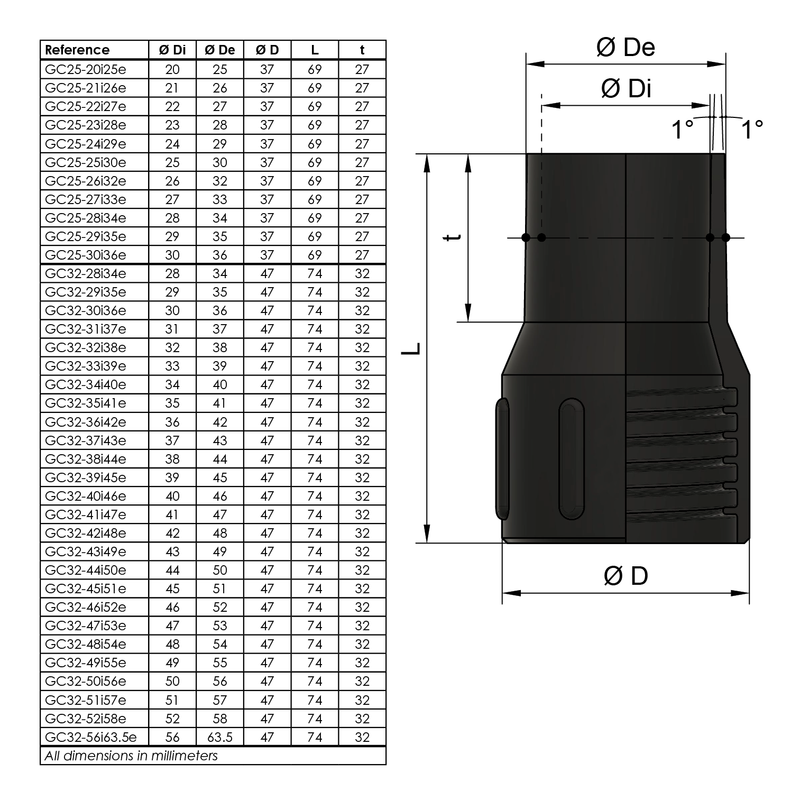

Note: If selecting based on the internal diameter of the end fitting, refer to the provided table to find the corresponding external diameter.
Applications
- Industrial Vacuum Systems – Secure connection for dust and debris extraction.
- Textile & Woodworking Machines – Reliable fit for material handling.
- Granulate Conveyors – Ensures efficient material flow.
- Electronics Workshops – ESD protection for sensitive components.
PLEASE NOTE: Each connector is sold individually. The displayed price corresponds to 1 connector/nozzle. Refer to the tables/drawings for accurate sizing.
