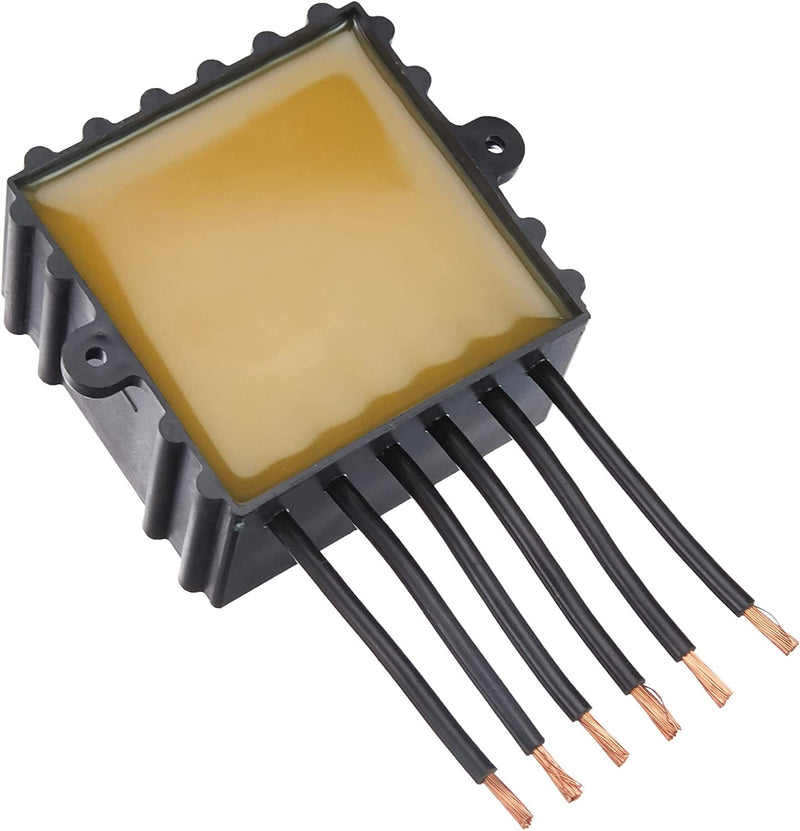

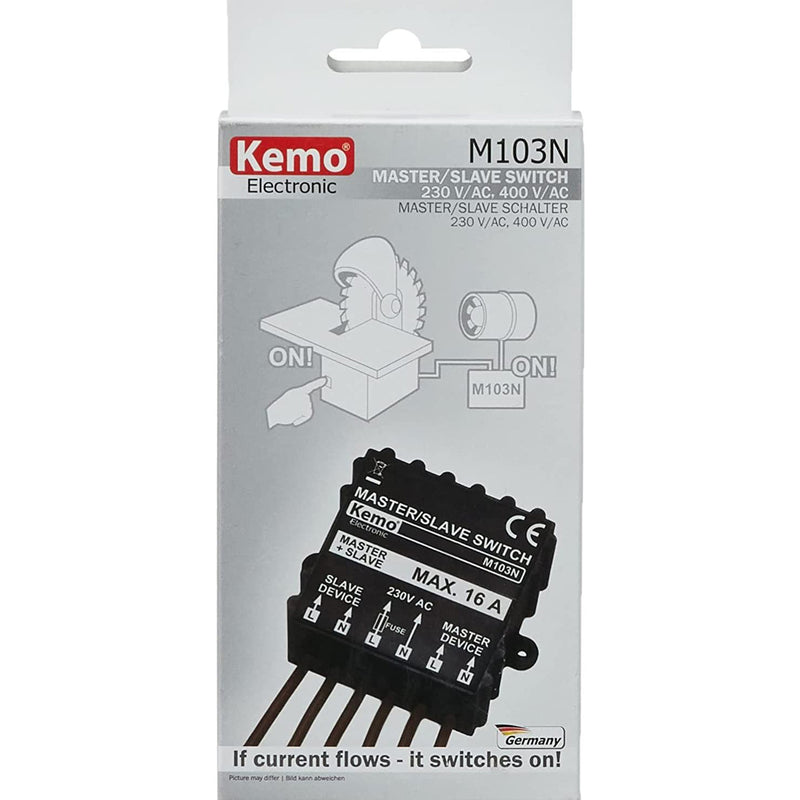

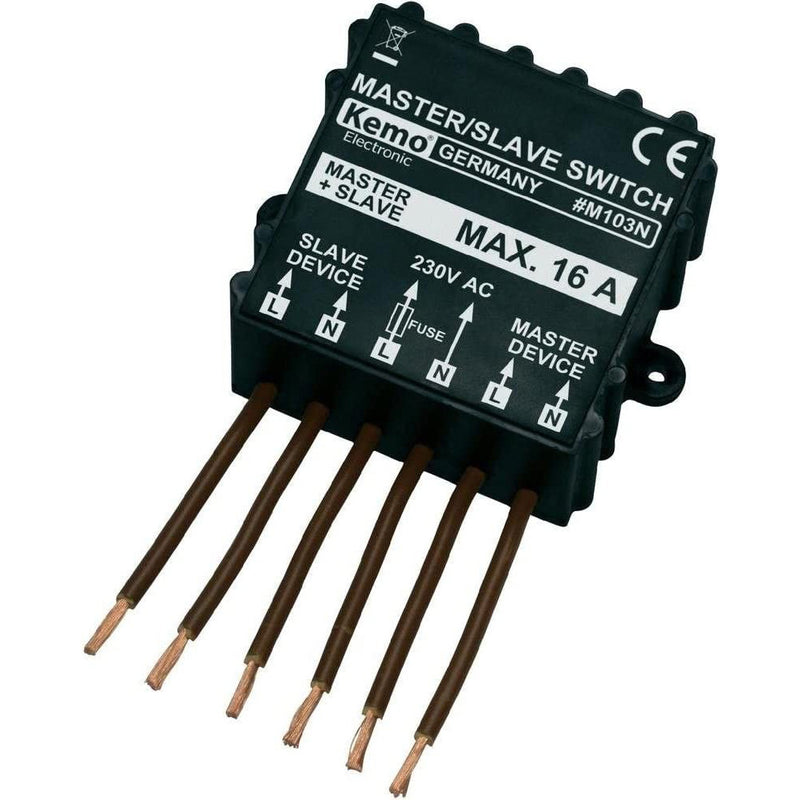

The Kemo M103N is a versatile Master/Slave switch designed to automate your workshop or industrial setup. When a machine, lamp, or other device (master) is turned on, the M103N automatically activates a connected load (slave), such as a vacuum cleaner, dust extractor, or lighting system. This intelligent switching solution ensures seamless operation and enhanced safety, making it ideal for woodworking, metalworking, and general workshop applications.
Compatible with both 1-phase and 3-phase machines (with single-phase sampling), the M103N simplifies power management by eliminating manual switching and reducing energy waste.
✨ Key Features & Benefits
- Automatic Load Activation: Switches a slave device (e.g., vacuum cleaner) on/off in sync with your master machine or tool.
- Wide Voltage Compatibility: Works with 230V AC and 400V AC systems.
- High Current Capacity: Supports 15A for both master and slave, with a total output limit of 16A (e.g., if the master uses 10A, the slave can handle up to 6A).
- Low Tripping Power: Activates at currents as low as 40 mA, ensuring responsive and reliable operation.
- Robust Performance: Operates in temperatures from -15°C to +70°C, making it suitable for demanding environments.
- Energy-Efficient: Consumes less than 0.5W of power, minimizing energy usage.
- Compact Design: Measures 67 x 65 x 37 mm (without mounting brackets), allowing for easy installation in tight spaces.
- Simple Wiring: Uses single-core connection cables for quick and secure setup.
🔧 Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 230V AC (1-phase) / 400V AC (3-phase) |
| Maximum Current | 15A (master), 15A (slave) |
| Total Output Limit | 16A (combined) |
| Tripping Power | ~40 mA or less |
| Switch Function | Relay (1 x ON, max. 16A) |
| Own Power Consumption | <0.5W |
| Operating Temperature | -15°C to +70°C |
| Dimensions | 67 x 65 x 37 mm (without brackets) |
| Connection Type | Single-core cable |
| Total Output Power | 3600W |
🔌 Example Application
- If your master machine draws 10A, you can connect a slave device (e.g., vacuum cleaner) with a maximum of 6A.
- Ideal for automating dust extraction, lighting control, or auxiliary equipment in workshops.
📦 Scope of Delivery
- 1 x Kemo M103N Master/Slave Switch
🔍 Why Choose the M103N?
✅ Increases efficiency by automating secondary devices.
✅ Reduces manual intervention, improving workflow.
✅ Durable and reliable, built for industrial and professional use.
✅ Easy to install with standard wiring.
