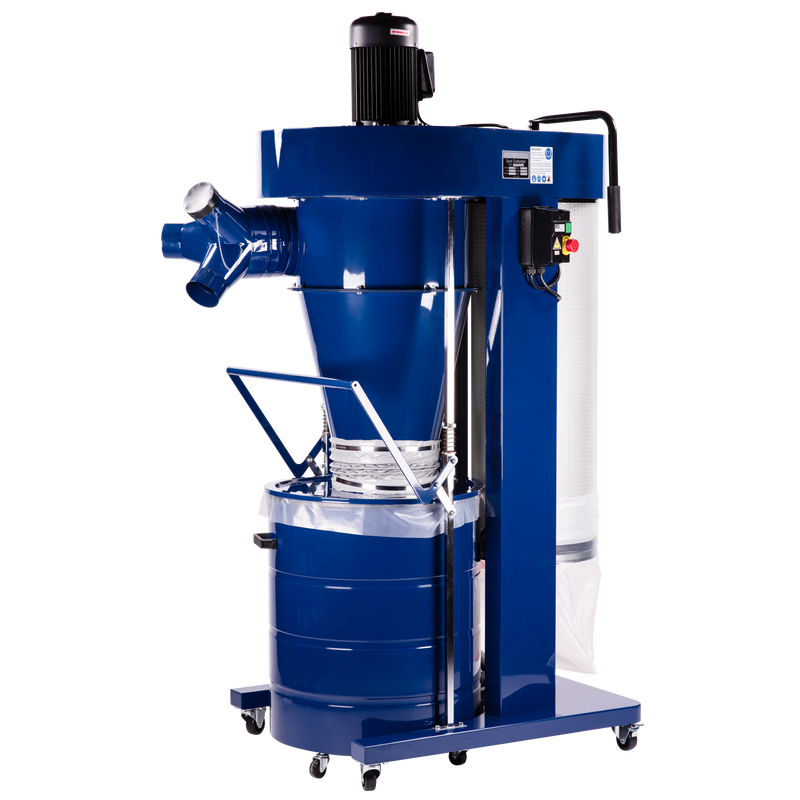

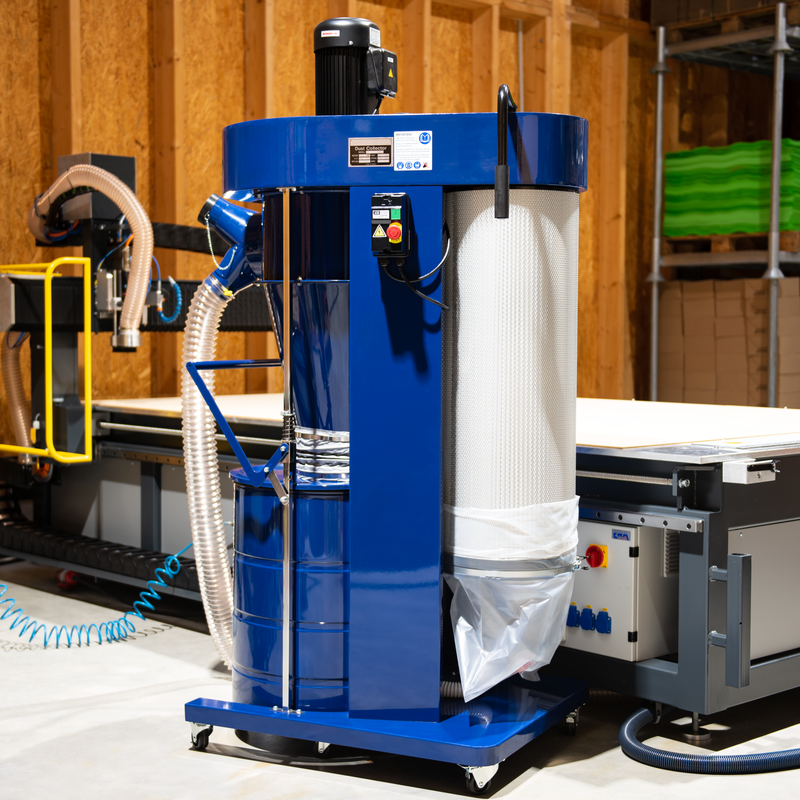

The DUST COMMANDER CDC30x is a powerful, industrial-grade portable cyclone dust collector, engineered for maximum efficiency and durability in demanding workshop and industrial environments. Available in 220V single-phase or 380V three-phase, this unit delivers exceptional dust extraction performance, making it ideal for woodworking, metalworking, and other high-dust applications.

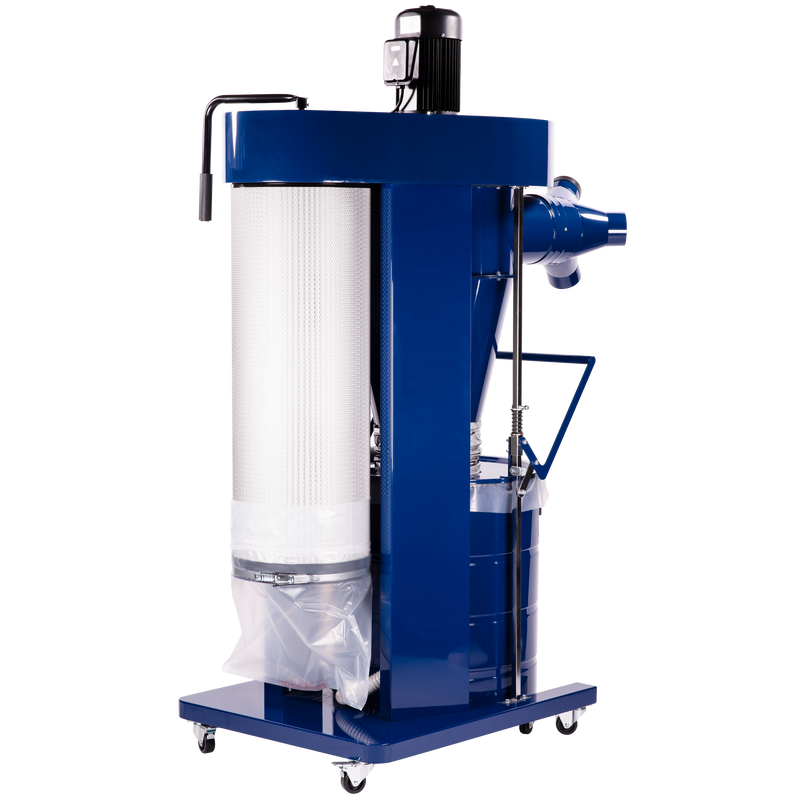

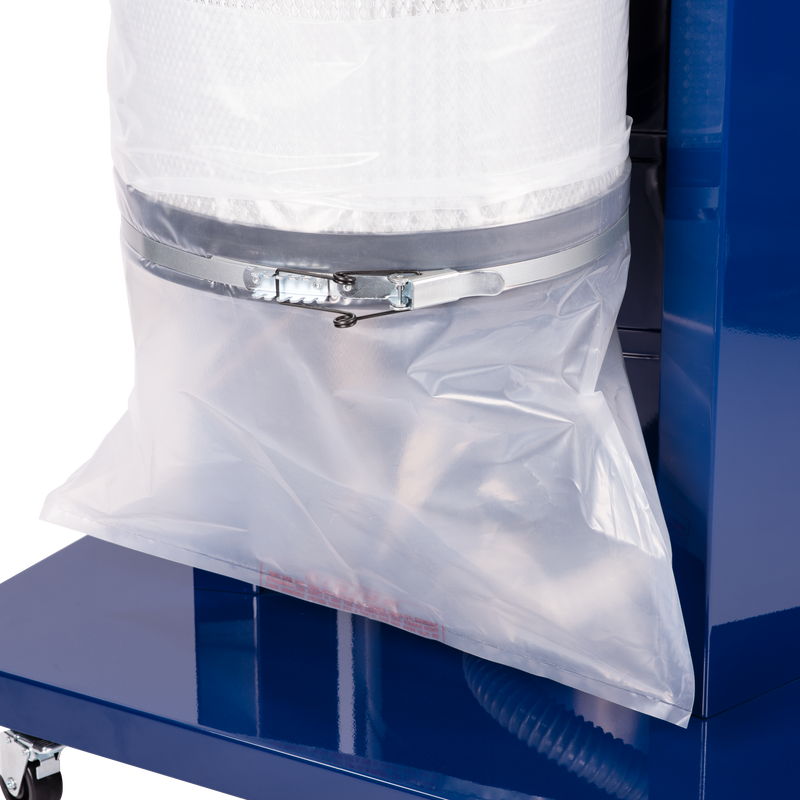

With a 3 HP motor, the CDC30x generates an impressive 3300 m³/h airflow and up to 2.7 kPa of static pressure, ensuring superior suction and filtration. Its two-stage collection system efficiently separates heavy wood chips and large dust particles into a 170-liter plastic-bag-lined steel drum, while fine dust is captured by a high-efficiency canister filter and deposited into a separate collection bag.
✨ Key Features & Benefits
-
💨 High Airflow & Static Pressure:
- 3300 m³/h airflow and 2.7 kPa static pressure for powerful, consistent suction.

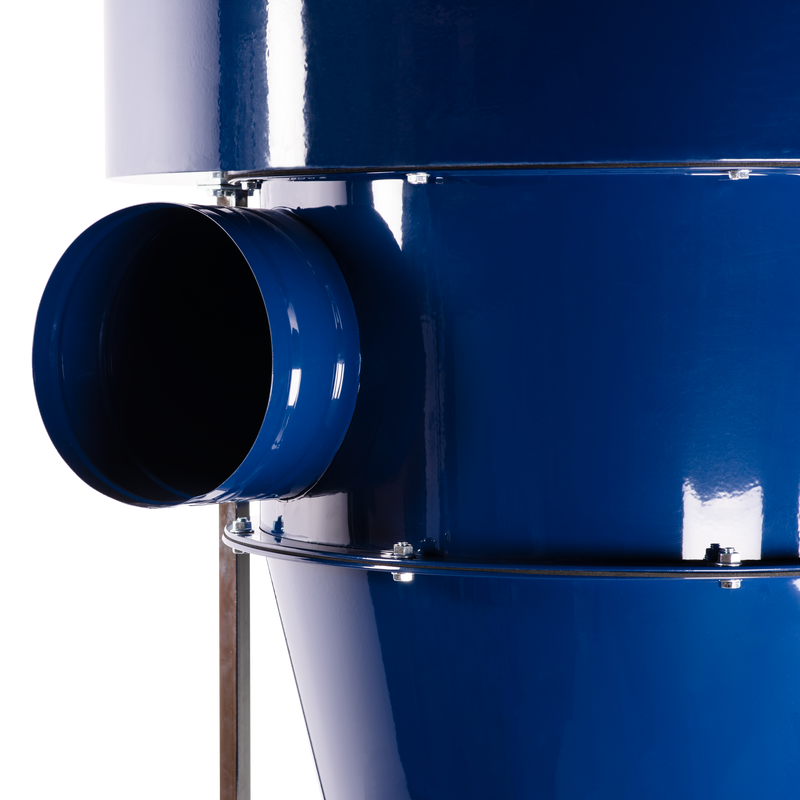

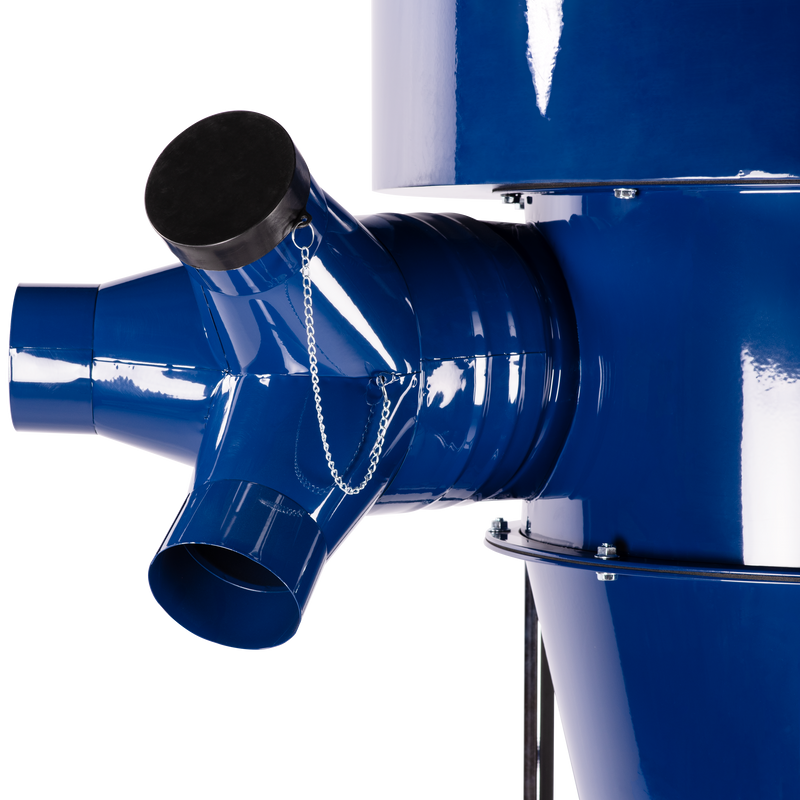

- 200mm intake hole with 3 x 100mm adapters, allowing multi-machine connectivity.
-
🔄 Two-Stage Filtration System:
- First Stage: Heavy debris is separated into the 170-liter steel drum.
- Second Stage: Fine dust is captured by a spun-bond polyester filter, achieving 99.9% filtration efficiency at 1 micron.
-
🧹 Easy Maintenance & Disposal:

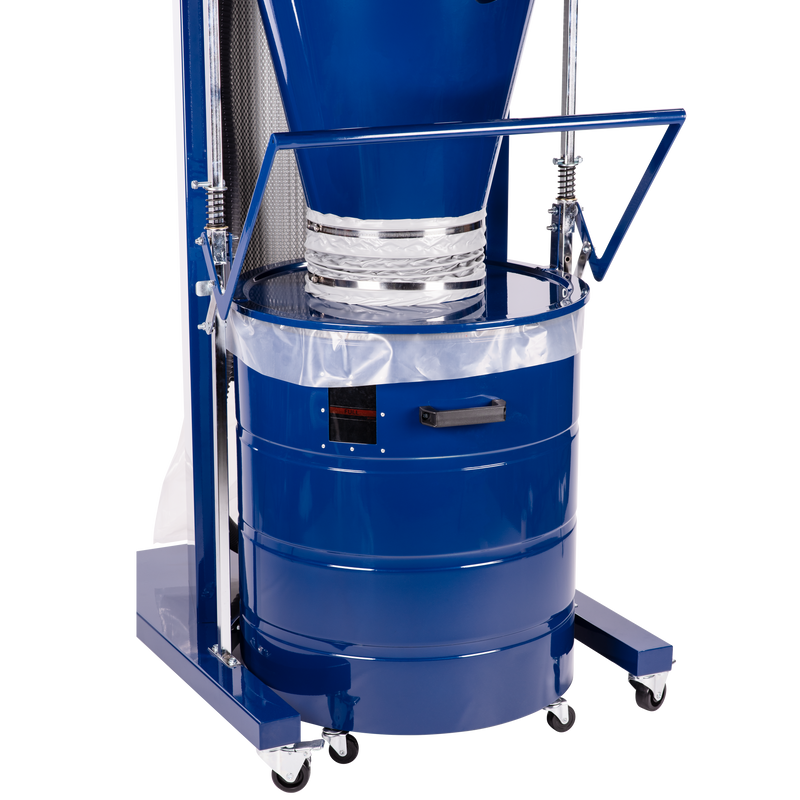

- Quick-release handle on the collection drum for effortless sawdust disposal.

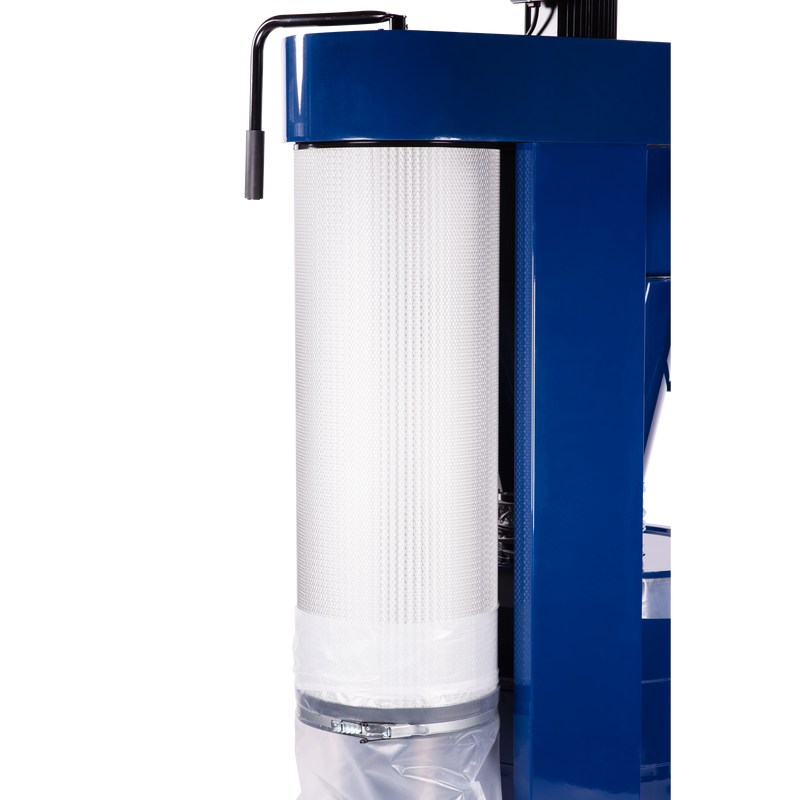

- Paddle brushes and crank handle keep the pleated filter clean, maintaining optimal airflow.

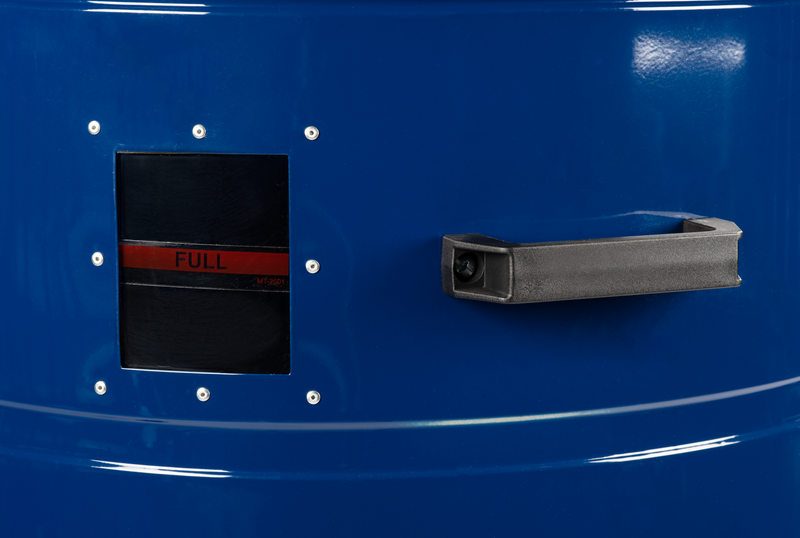

- Viewing window indicates when the drum needs emptying.

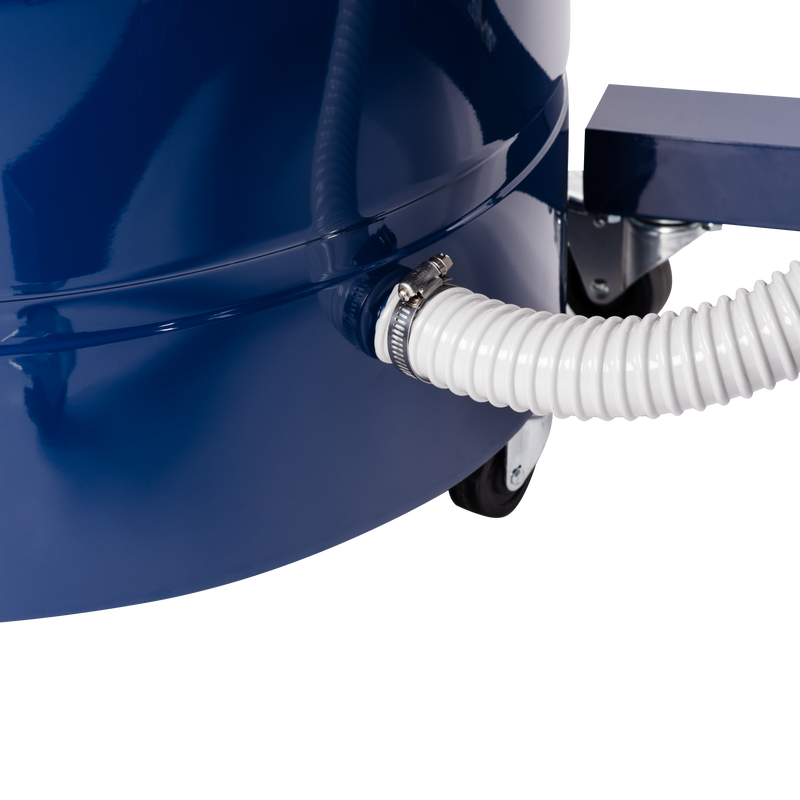

- Vacuum equalization system enables the use of disposable plastic bags for hassle-free chip disposal.
-

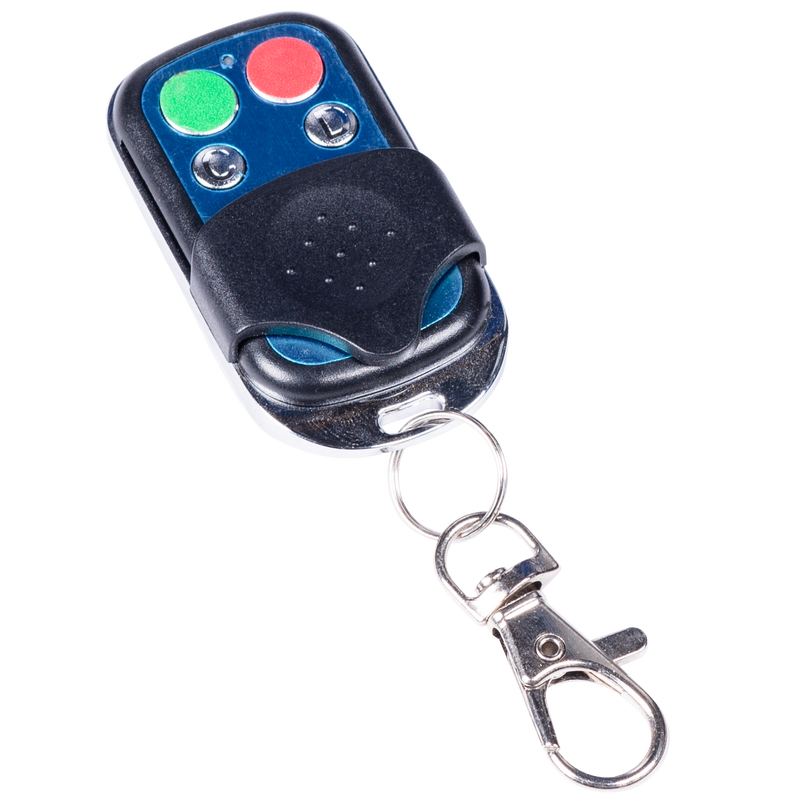

🎛️ Wireless Remote Control:
- Convenient remote operation for easy start/stop from a distance.
-
🔇 Quiet Operation:
- Operates below 79 dB, ensuring a quieter workspace.
-
🏗️ Robust Construction:
- 1.0mm thick steel for durability and longevity.
- Swivel casters and lift handle for easy mobility.
-
🔌 Versatile Power Options:
- Available in 220V single-phase (15A) or 380V three-phase (6A).
-
📦 Scope of Delivery:
- Delivered in kit form for assembly.
- Supplied without mains plug (for custom installation).
📏 Technical Specifications
| Feature | Specification |
|---|---|
| Motor | 3 HP, 220V/380V |
| Airflow Capacity | 3300 m³/h @ 0.72 kPa |
| Max Static Pressure | 2.7 kPa |
| Filtration | 1 micron (99.9% efficiency) |
| Filter Surface Area | 4.18 m² |
| Collection Size | 170 liters |
| Sound Rating | < 79 dB |
| Dimensions | 79 x 137 x 208 cm |
| Weight | 150 kg (170 kg shipping weight) |
🔧 Ideal Applications
- Woodworking shops
- Metalworking and machining
- Industrial dust extraction
- Workshops requiring high-volume dust collection
💡 Why Choose the DUST COMMANDER CDC30x?
- Unmatched Performance: Handles heavy-duty dust extraction with ease.
- Efficient Filtration: Extends equipment life and reduces maintenance.
- User-Friendly Design: Wireless remote, easy disposal, and low noise for a productive workspace.
- Durable & Reliable: Built to last with high-quality steel construction.
Upgrade your dust collection system with the DUST COMMANDER CDC30x—the ultimate solution for clean, efficient, and powerful dust extraction.
